Hyundai Genesis (DH): Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams
Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

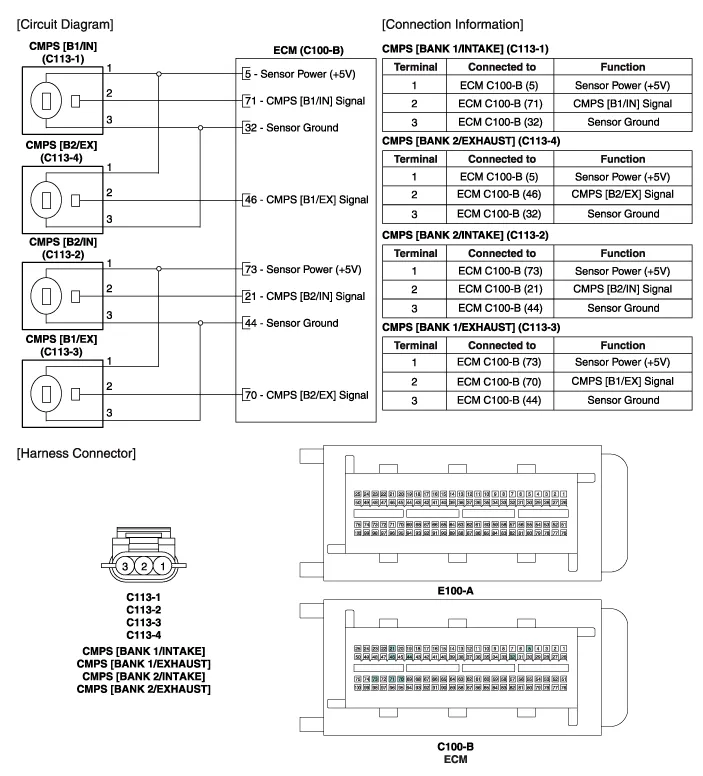

| Circuit Diagram |
Signal Waveform
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to
