Hyundai Genesis (DH): Engine Control System / Camshaft Position Sensor (CMPS) Troubleshooting

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Troubleshooting

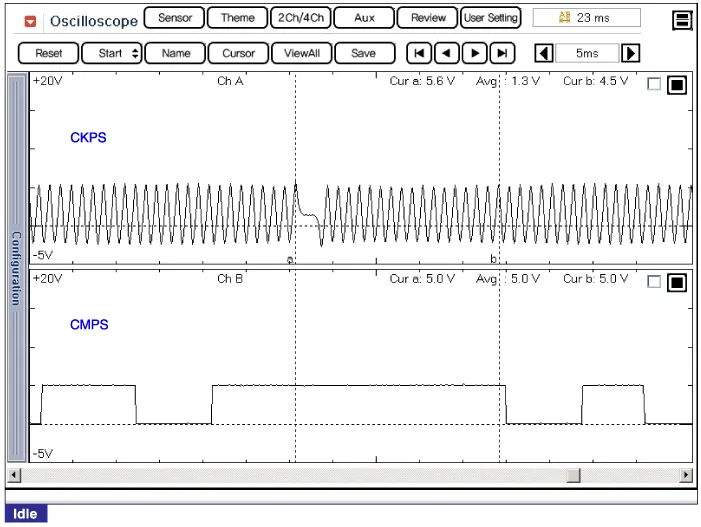

Signal Waveform

    Specification ItemSpecificationOutput Voltage (V)High: 5.0VLow: 0.7VAir Gap (mm)0.5 ~ 1.5

    Circuit Diagram
