Hyundai Genesis (DH): Cylinder Head Assembly / Camshaft Components and Components Location

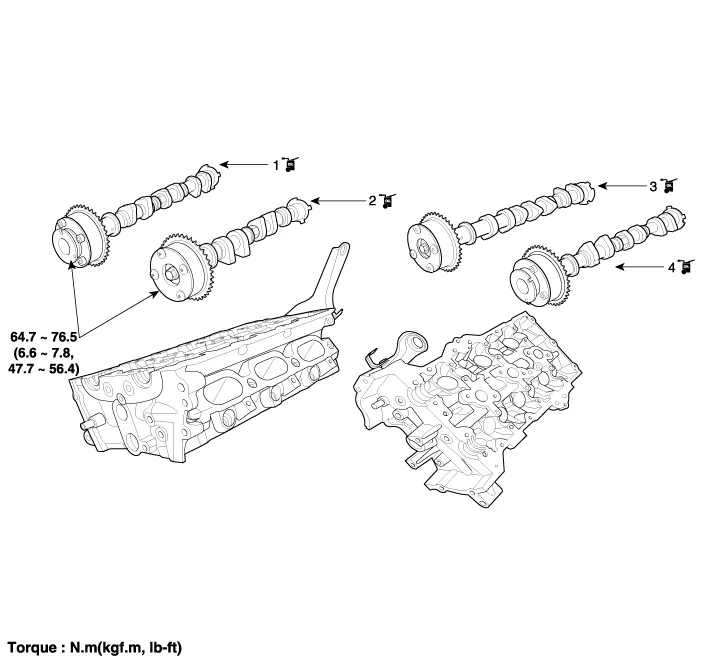

| Components |
| 1. RH Exhaust camshaft 2. RH Intake camshaft | 3. LH Intake camshaft 4. LH Exhaust camshaft |
Removal Continuous Variable Valve Timing (CVVT) 1. Remove the timing chain. (Refer to Timing System - "Timing Chain") 2. Remove the CVVT assembly.
Removal LH Intake and Exhaust camshaft 1. Remove the timing chain. (Refer to Timing System - "Timing Chain") 2. Remove the fuel pump bracket (A).
