Hyundai Genesis (DH): BLUE LINK / BLUE LINK Unit(I-BOX) Components and Components Location

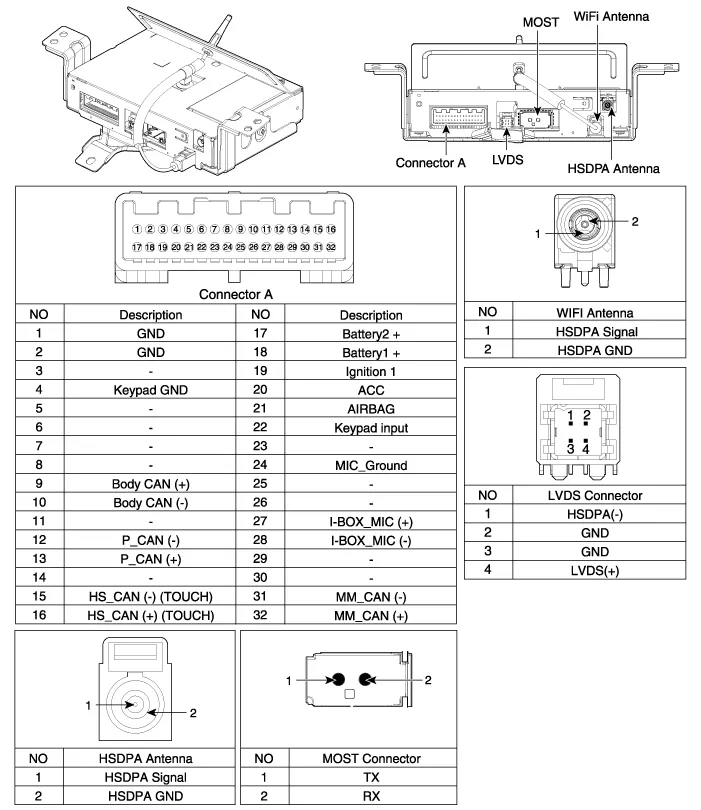

| Component |
Description Vehicle information systems (BLUE LINK) based on state-of-the-art IT systems, safety and security The term "Telematics" is a combination of telecommunication and informatics.
Removal 1. Remove the battery(-) terminals. 2. Remove the AVN monitor. (Body - "Premium AVN System" ) 3. Disconnect the cables and connectors (A) from the MTS unit.
