Hyundai Genesis (DH): Air Conditioning System / Compressor Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Compressor Components and Components Location
| Components |

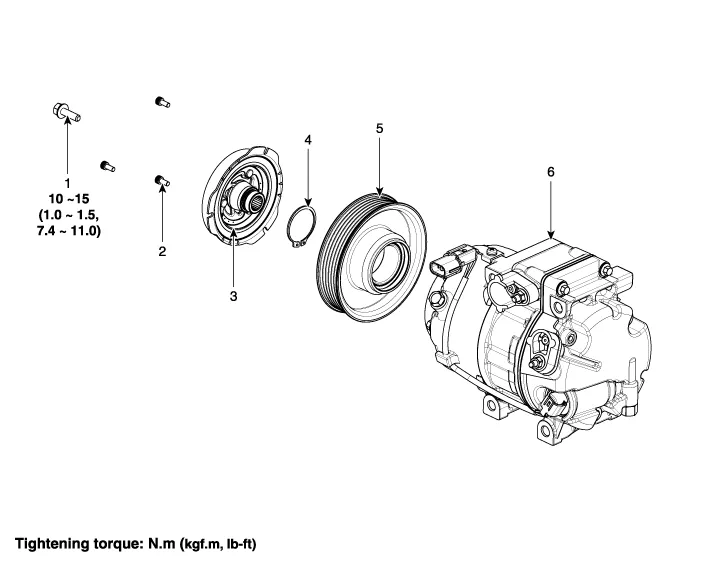

| [Lambda Engine] |
| 1. Center Bolt 2. Hub Bolt 3. Limiter & Damper Assembly | 4. Snap Ring 5. Pulley 6. Compressor Assembly |

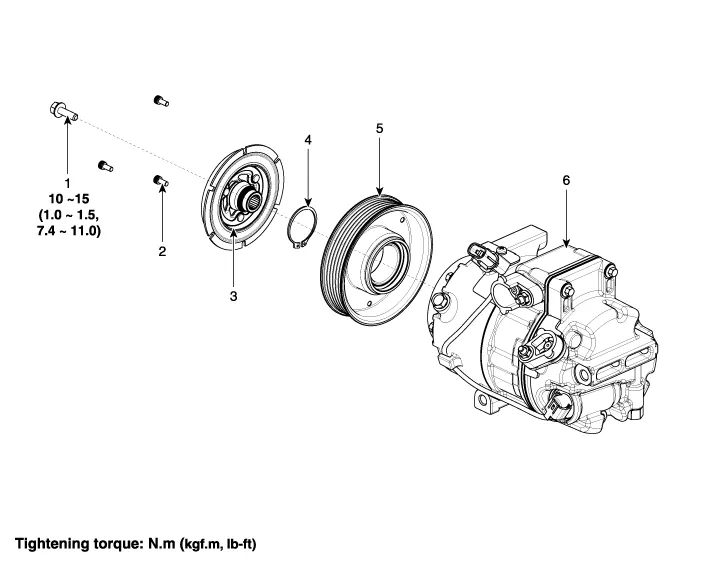

| [Tau Engine] |
| 1. Center Bolt 2. Hub Bolt 3. Limiter & Damper Assembly | 4. Snap Ring 5. Pulley 6. Compressor Assembly |
Description The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine. The compressor changes low-pressure and low-temperature refrigerant gas into high-pressure and high-temperature refrigerant gas.
Removal 1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
