Components Location
ITA (Integrated Transfer case Actuator)

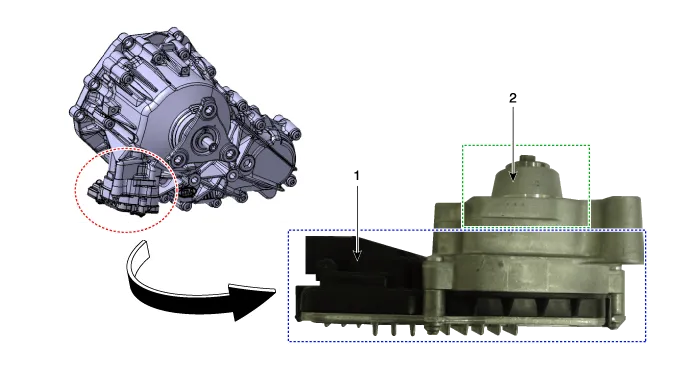

The ITA is a unit integrated with the AWD ECU and motor, and the AWD ECU variably controls the magnitude of the driving force delivered to the front wheel by determining the driving condition from the various input signals.

1. AWD ECU
2. Motor

    Description The AWD ECU distributes the driving force to the front/rear wheel through controlling the multi plate clutch on the AWD transfer case by analyzing the input information, i.
