Hyundai Genesis (DH): Automatic Transmission Cooling System / ATF Warmer Components and Components Location

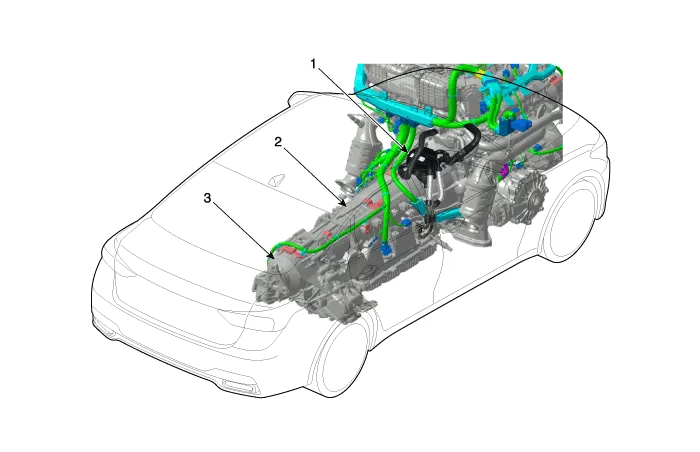

| Component Location |
| 1. ATF Warmer 2. Transmission | 3. Transfer case(AWD) |
Description The ATF warmer is mounted on the transmission to reduce oil viscosity frictionby increasing the temperature of oil in cold state, which in turn improves fuel efficiency It is mounted on the entry of the Electronic Throttle Controller (ETC) in series, as shown in the diagram, and minimizes the effects of cabin heating system.
Removal 1. Draining the coolant. (Refer to Engine Mechanical System - "Coolant") 2. Remove the exhaust manifold. (Engine Mechanical System - "Exhaust Manifold") 3.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Description and Operation
Description The photo sensor is located in the right side of the inside rearview mirror. he integrated rain sensor is located in the right side of the inside rearview mirror. The integrated rain sensor is a multifunctional sensor which combines the photo sensor and auto light sensor, and has a built-in photovoltaic diode (for detecting t
Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Repair procedures
Inspection 1. Turn the ignition switch ON. 2. Connect the GDS. 3. Emit intensive light toward the photo sensor using a lamp, and check the output voltage change. 4. The voltage will rise with higher intensive light and fall with lower intensive light.
