Hyundai Genesis (DH): Cooling System / Active Air Flap(AAF) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Cooling System / Active Air Flap(AAF) Components and Components Location

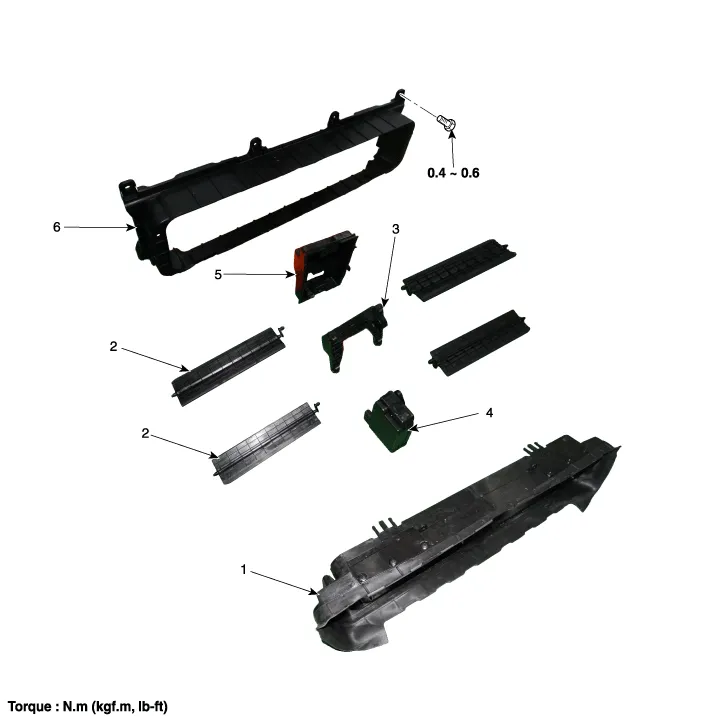

Components

1. Active air housing
2. Active air flap
3. Active air link
4. Active air actuator
5. Active air duct
6. Active air actuator cover

    Description The AAF (Active Air Flap) is located between radiator grille and radiator, and consists of an actuator and 6 air flaps. The system receives information from EMS, FATC, TCU, MCU and LDC via CAN communication .

    Schematic Diagram Circuit Diagram
