Hyundai Genesis: Front Door / Front Door Module Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Module Components and Components Location

Component Location

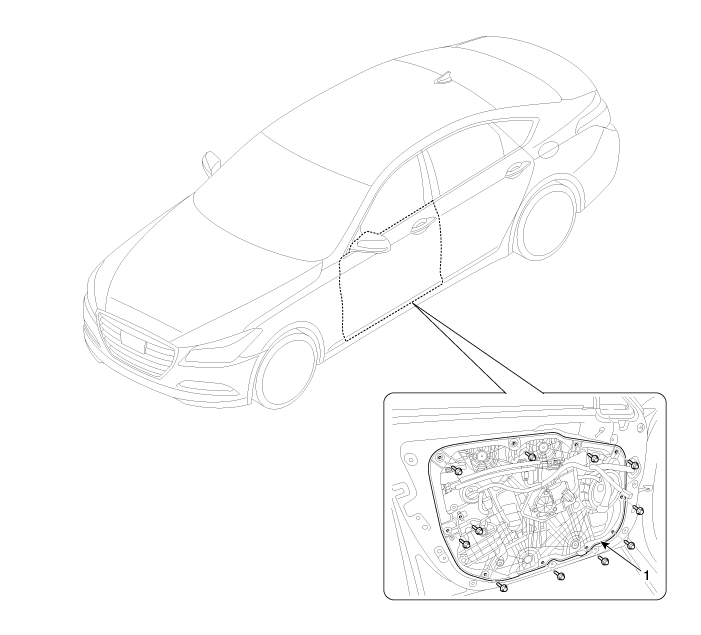

1. Front door module


Front Door Window Glass Repair procedures
Replacement 1. Remove the front door trim. (Refer to Front Door - "Front Door Trim") 2. After loosening the mounting screws, remove the front door belt outside weatherstrip (A). 3. Separ ...

Front Door Module Repair procedures
Replacement 1. Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass") 2. Remove the front door outside handle. (Refer to Front Door - "Front Door Outside Hand ...
