Hyundai Genesis: Differential Carrier Assembly / Front Differential Assembly(AWD) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Driveshaft and axle / Differential Carrier Assembly / Front Differential Assembly(AWD) Components and Components Location

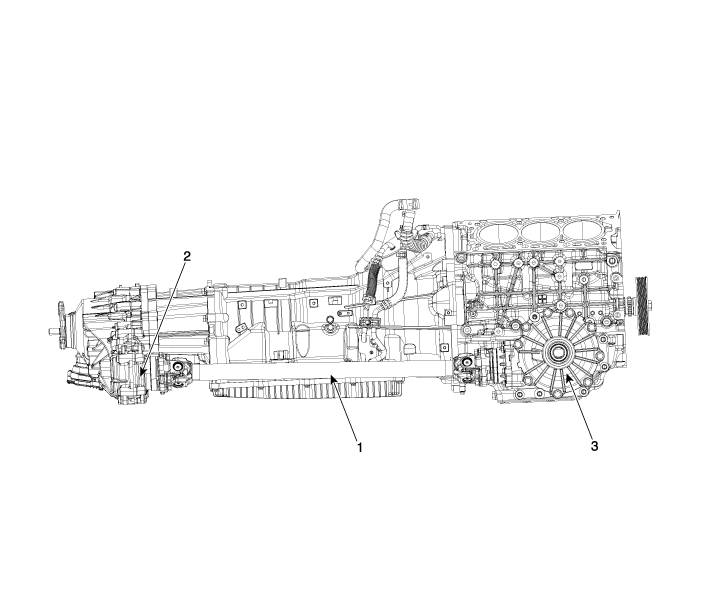

Components Location

1. Front propeller shaft
2. Transfer case
3.Front differential assembly

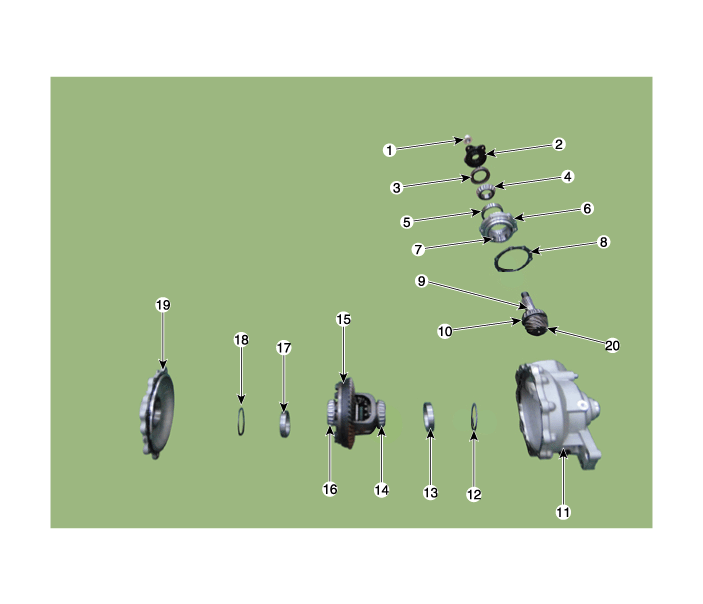

Components

1. Pinion lock nut
2. Companion flange
3. Pinion oil seal
4. Pinion front bearing
5. Pinion front bearing race
6. Pinion cage
7. Pinion rear bearing race
8. Inner bearing gear adjustment shim
9. Pinion bearing spacer
10. Pinion rear bearing
11. Differential carrier
12. Spacer
13. Side bearing race
14. Side bearing
15. Differential case assembly
16. Side bearing
17. Side bearing race
18. Spacer
19. Differential carrier cover
20. Pinion gear drive

Differential Carrier Assembly
...

Front Differential Assembly(AWD) Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported 2. Remove the front wheel and tire (A) from the front hub.     Be carefu ...
