Hyundai Genesis (DH): Engine And Transaxle Assembly / Engine Mounting Components and Components Location

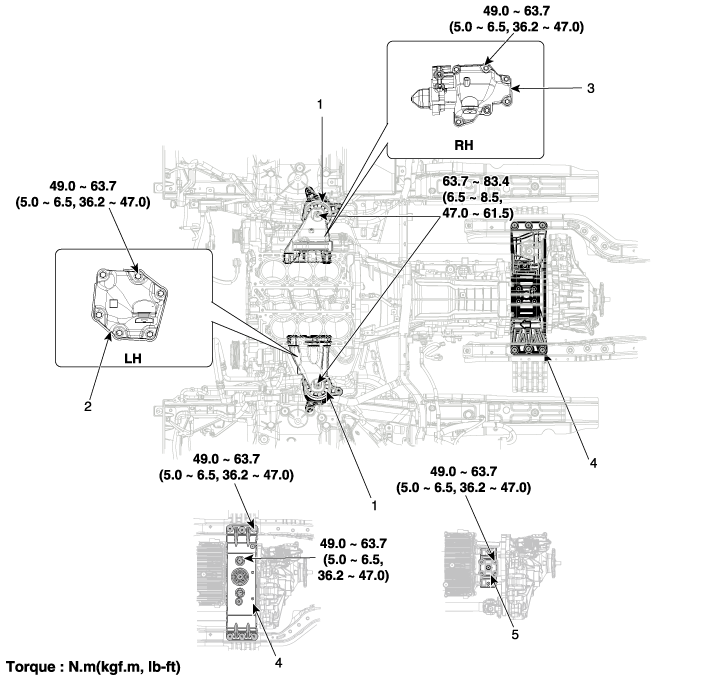

| Components |
| [2WD] |
| 1. Engine mounting insulator assembly 2. Engine support bracket LH | 3. Engine support bracket RH 4. Transmission mounting insulator |
| [AWD] |
| 1. Engine mounting insulator assembly 2. Engine support bracket LH 3. Engine support bracket RH | 4. Transmission support bracket 5. Transmission mounting insulator |
Removal and Installation 1. Remove the front under cover (A). Remove the rear under cover(B). Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.
Removal and Installation LH Engine Mounting Insulator 1. Disconnect the negative (-) battery terminal from the trunk room. 2. Remove the engine cover.
