Hyundai Genesis (DH): Power Windows / Power Window Switch Schematic Diagrams
| Circuit Diagram |

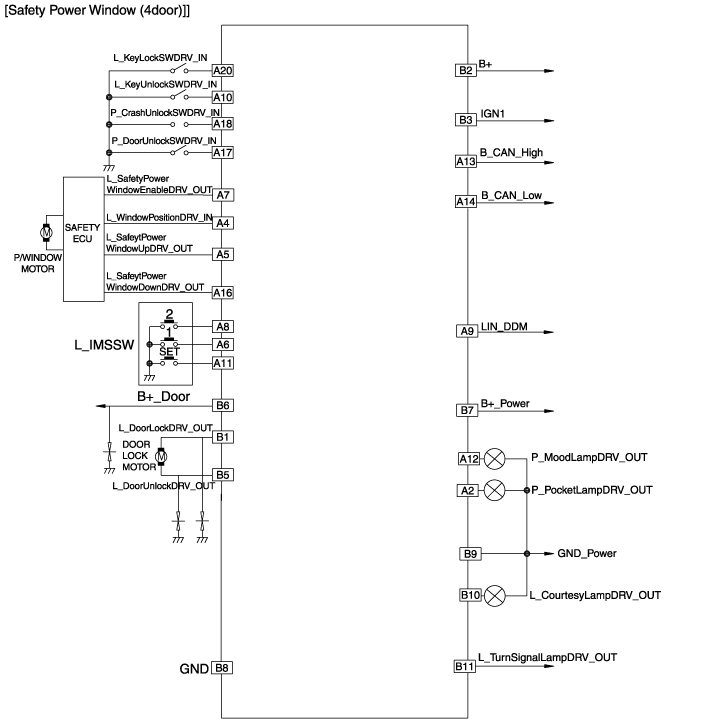

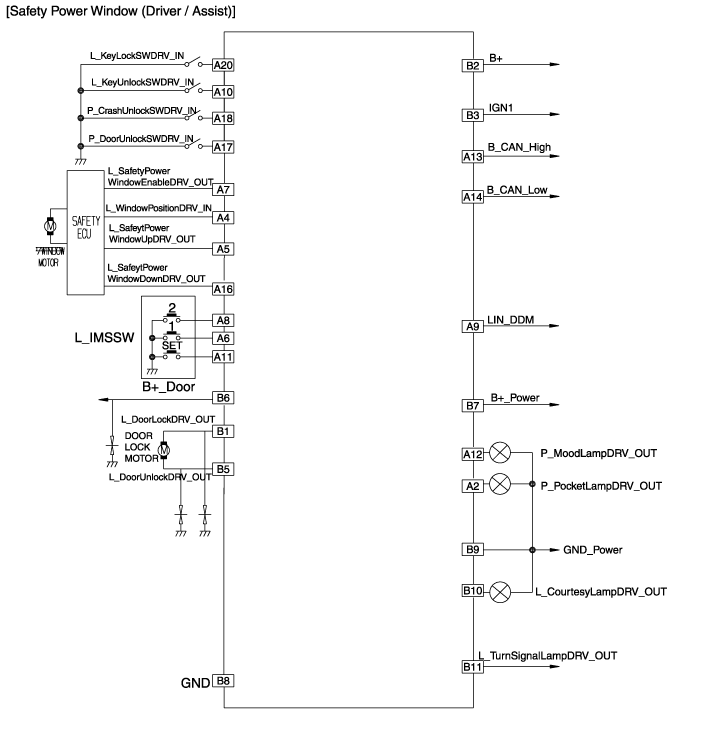

| Driver Power Window Switch |

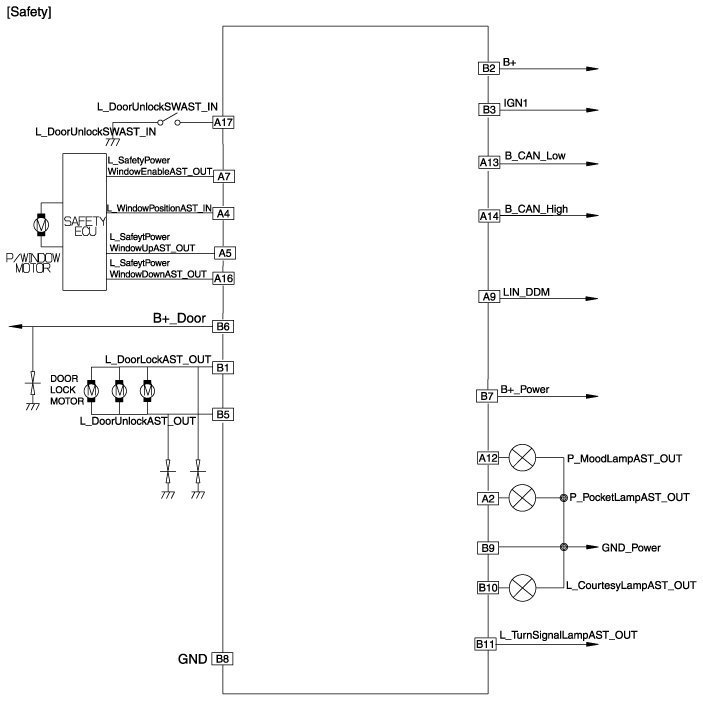

| Assist Power Window Switch |

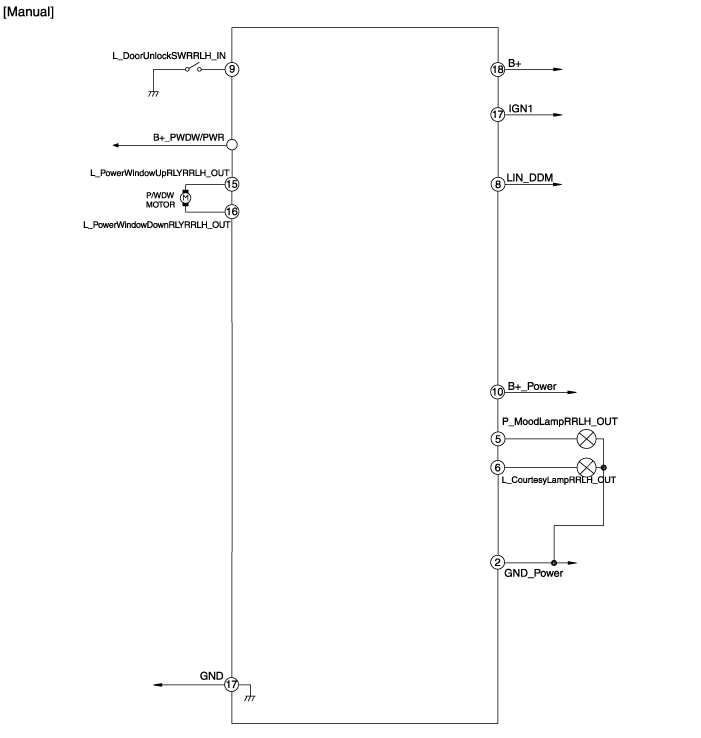

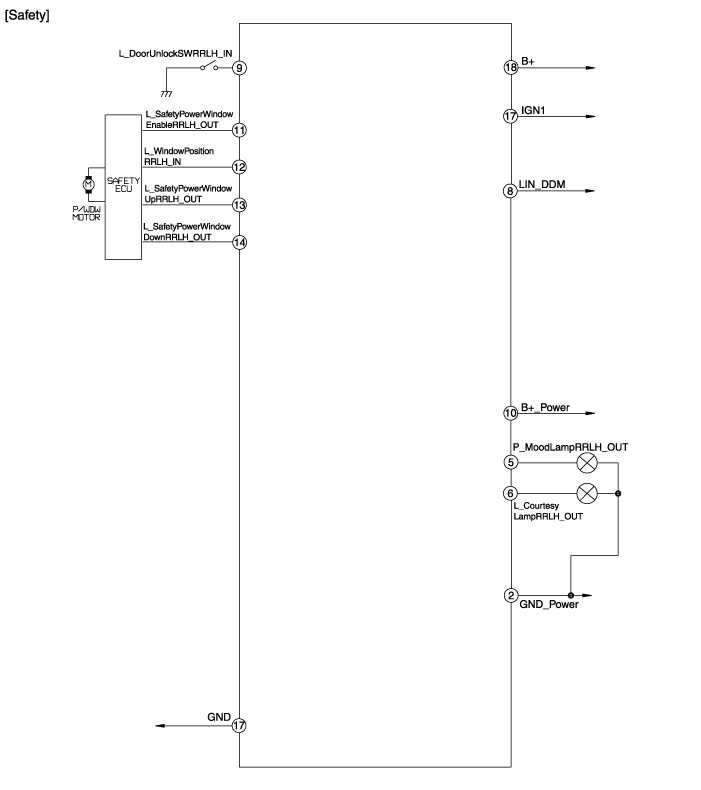

| Rear Power Window Switch |
Components Driver Power Window Switch Assist Power Window Switch Rear Power Window Switch
Inspection Diagnosis With GDS 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS). (1) Self diagnosis : Checking failure and code number (DTC) (2) Current data : Checking the system input/output data state (3) Actuation test : Checking the system operation condition (4) Additional function : Controlling other features including system option setting and zero point adjustment 2.
