Components

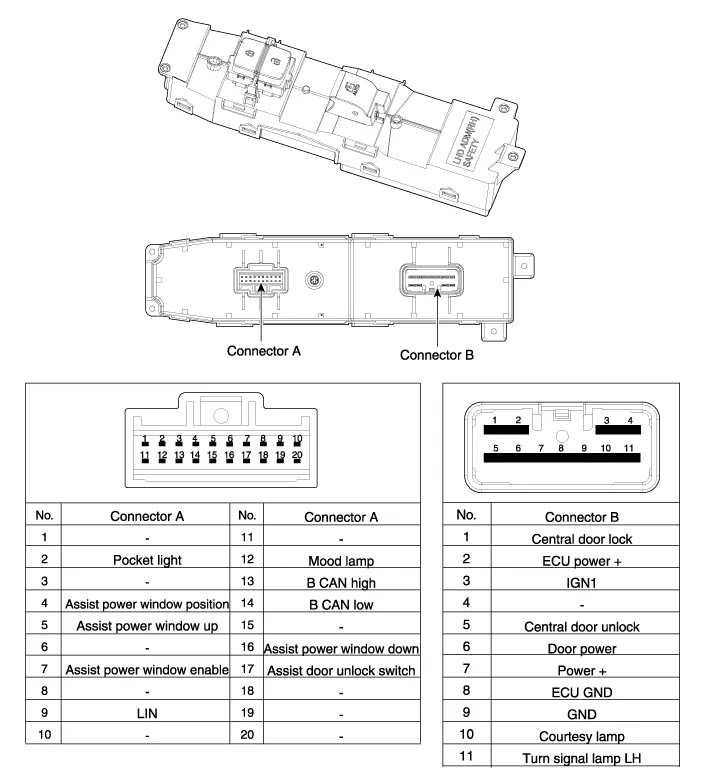

Driver Power Window Switch

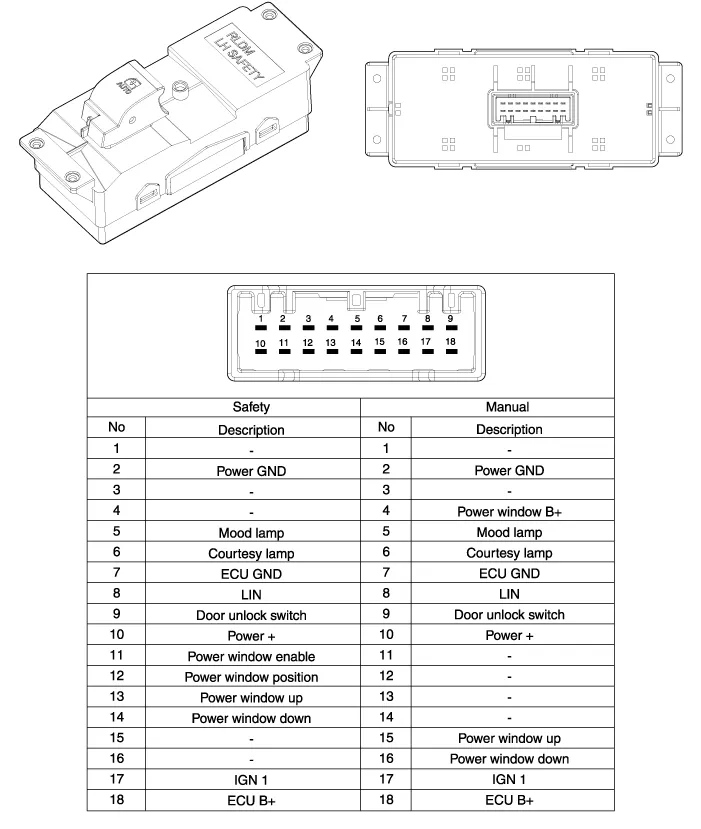

Assist Power Window Switch

Rear Power Window Switch

❮Power Window Motor Repair procedures

Inspection

Power Window Switch Schematic Diagrams❯

Circuit Diagram Driver Power Window Switch Assist Power Window Switch Rear Power Window Switch
