Hyundai Genesis: BCM (Body Control Module) / Description and Operation

Description
Body Control Module (BCM) function
NO
BCM Function
1
Burglar Alarm
2
Defroster
3
Rear Curtain
4
ATM control
5
Tail Lamp
6
H/Lamp Low/High
7
Welcom/Escort
8
Auto Light
9
Passing
10
HBA
11
Front/Rear Fog Lamp
12
AV Tail
13
DRL lamp control
14
Static Bending
15
Flasher
16
Room Lamp
17
Foot Lamp
18
Mood Lamp
19
SSB Ring Illumination
20

21
Panic Alarm
22
Remote Start
23
Trunk
24
SBR
25
Key Operated Warning
26
Parking Brake Warning
27
SMK System Warning
28
Sun Roof Open Warning
29
PAS Warning
30
Front Wiper Low/High
31
Front Wiper Mist
32
Front Wiper Auto
33
Front Wiper Washer
34
USM
35
ECM Mirror
36
CAN
37
LIN

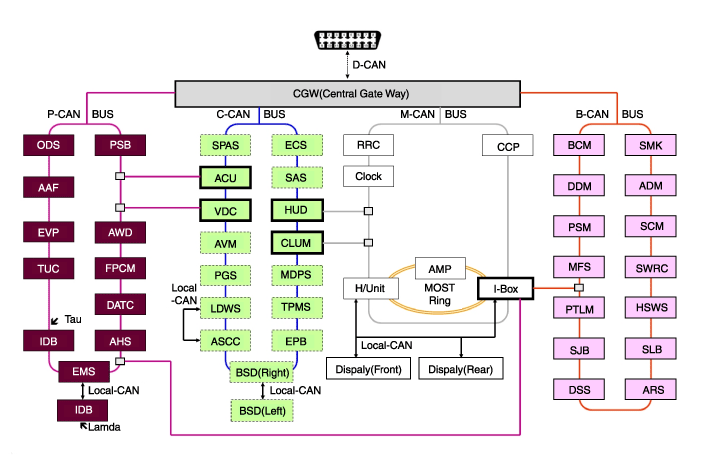

Communication Network Diagram

Abbreviation
Explanation
AAF
Active Air Flap
ACU
Airbag Control Unit
ADM
Assist Door Module
AHD
Active Hood System
AMP
Amplifier
ARS
Armrest Switch
ASCC
Advanced Smart Cruise Control
AVM
Around View Monitor
AWD
All Wheel Drive
B_CAN
Body Controller Area Network
BCM
Body Control Module
BSD
Blind Spot Detection
C_CAN
Chassis Controller Area Network
CCP
Center Control Panel
CLUM
Cluster Module
DATC
Dual Automatic Temp Control
DDM
Driver Door Module
Display
Display Monitor
DSS
Driver Seat Switch
ECS
Electronic Control Suspention
EMS
Engine Management System
EPB
Electronic Parking Brake
EVP
Eva Vacuum Pump
FPCM
Fuel Pump Control Module
H/Unit
Head Unit
HSWS
Haptic Steering Warning System
HUD
Head Up Display
I-BOX
Telematics System
IDB
Integrated Dynamic Brake
LDWS
Lane Departure Warning System
M_CAN
Multi media Controller Area Network
MDPS
Motor Driven Power Steering
MFS
Multi-Function Switch
ODS
Occupant Detection System
P_CAN
Powertrain Controller Area Network
PGS
Parking Guide System
PSB
Pre-Safe Seat Belt
PSM
Power Seat Module
PTLM
Power Trunk Lid Module
RRC
Rear Remote Control
SAS
Steering Angle Sensor
SCM
Steering Column Module
SJB
Smart Junction Box
SLB
Seat Lumber Bolster
SMK
Smart Key Unit
SPAS
Smart Parking Assist System
SWRC
Steering Wheel Remote Controller
TCU
Transmission Control Unit
TPMS
Tire Pressure Monitoring System
VDC
Vehicle Dynamic Control

Schematic Diagrams
Circuit Diagram ...

Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box housing. (Refer to Body - "Glove Box") 3. Disconnect the body control module connectors (A). 4. Remove ...
