Hyundai Genesis: Tires/Wheels / Wheel Repair procedures

Wheel Runout

1.	Jack up the vehicle and support it with jack stands.

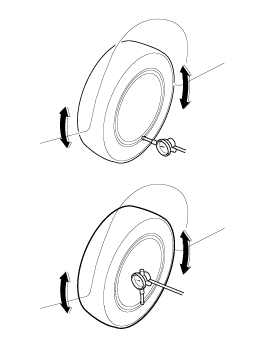

2.	Measure the wheel runout with a dial indicator as illustrated.

3.	Replace the wheel if the wheel runout exceeds the limit. Limit Radial Axial Runout mm Aluminum 0.3 0.3

Wheel Nut Tightening

1.	Tightening torque. Tightening torque : 90 ~ 110N.m (9 ~ 11kgf.m, 65.1 ~ 79.5lb-ft) When using an impact gun, final tightening torque should be checked using a torque wrench.

2.	Tightening order. Tighten the nuts by applying equal torque to each of them, according to the tightening order.

Tire Repair procedures

    • Tires and wheel other than those of the recommended sizes may cause unusual handling and poor vehicle control, resulting in a serious accident. Tire Wear 1. Me ...

Alignment Repair procedures

Inspection When using a wheel alignment tester to check the alignment of the wheels, make sure that the vehicle is horizontal and the front wheels are pointing straight ahead. Make sure that th ...
