Component Location

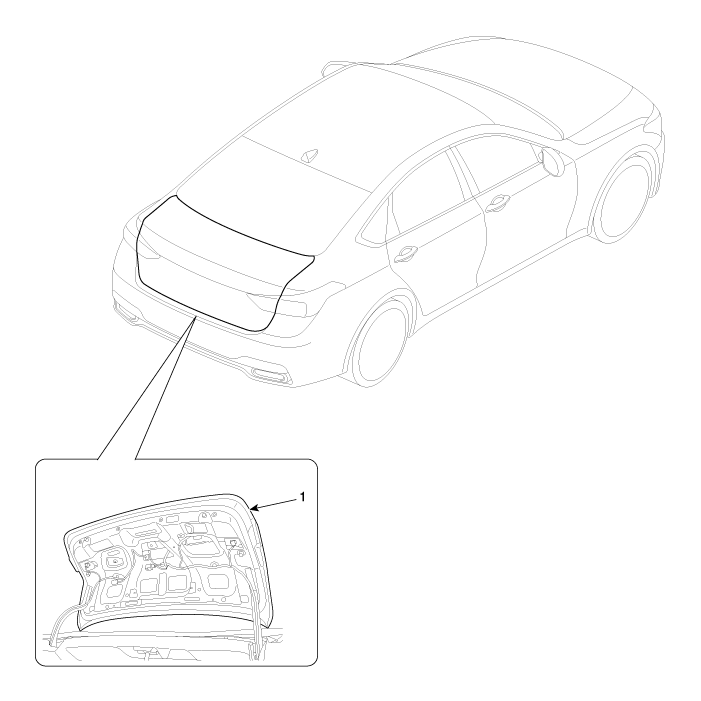

1. Trunk lid assembly


Repair procedures
Adjustment 1. Place the car on a flat surface and check whether the body and trunk lid are well-aligned. 2. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by movin ...

Trunk Lid Assembly Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing and installing the trunk lid, an assistant is necessary . â ...
