Hyundai Genesis (DH): AVN System / Steering Wheel Remote Controller (SWRC) Schematic Diagrams

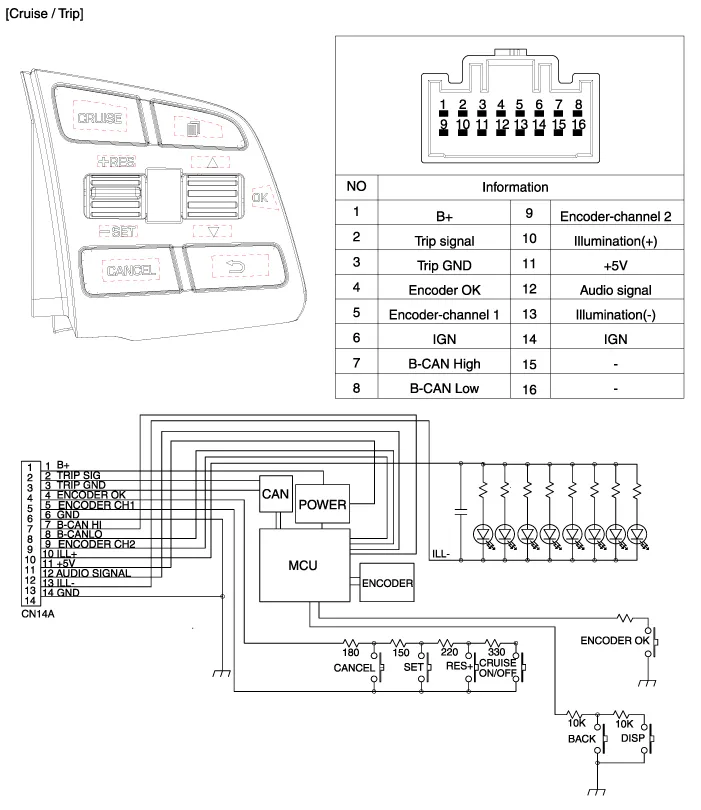

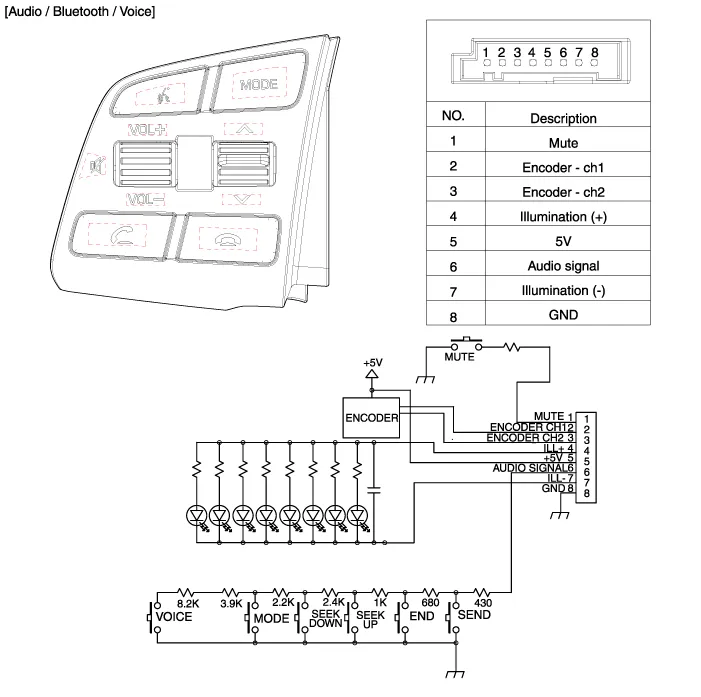

| Circuit Diagram |
Components 1. Left Top Remote Control Switch(Audio)2. Right Top Remote Control Switch(Cruise+Trip Computer)
Description The steering wheel remote controller (SWR) is composed of four switches and the right top switch is equipped with the Body CAN communication module.
