Hyundai Genesis (DH): Motor Driven Power Steering / Steering Gear box Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Steering System / Motor Driven Power Steering / Steering Gear box Components and Components Location

Components Location

[4WD]

1. Steering gear box
2. Motor
3. ECU

4. Sub frame
5. Knuckle

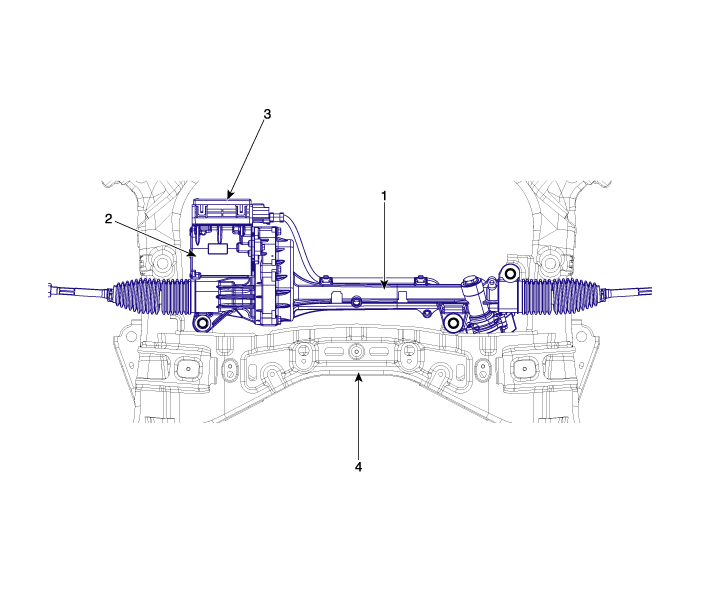

[2WD]

1. Steering gear box
2. Motor

3. ECU
4. Sub frame
