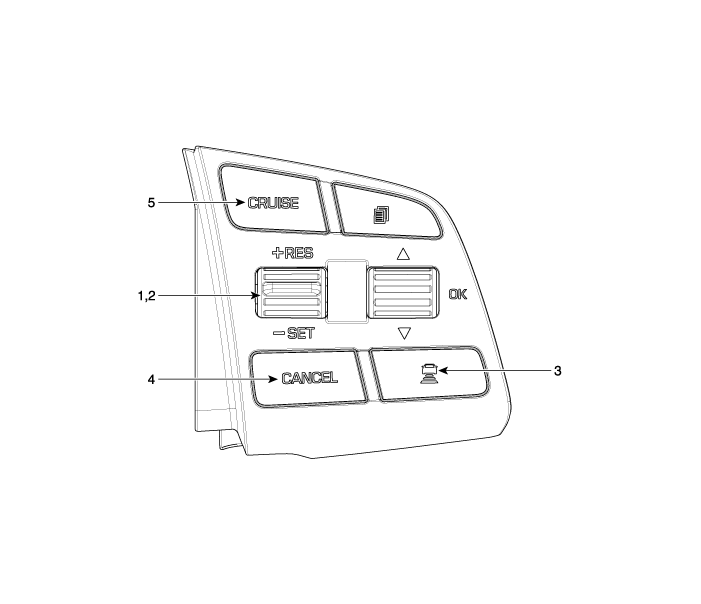

Components

1. SET - switch
2. RES + switch
3. SCC switch
4. CANCEL switch
5. CRUISE switch

Smart Cruise Control Unit Repair procedures
Removal 1. Remove the bumper. (Refer to Body - "Front Bumper") 2. Disconnect the smart cruise control unit connector. 3. Remove the smart cruise control unit assembly (A) from vehic ...

Smart Cruise Control Switch Schematic Diagrams
Circuit Diagram ...
