Hyundai Genesis (DH): Body Dimensions / Side Body Body Repair

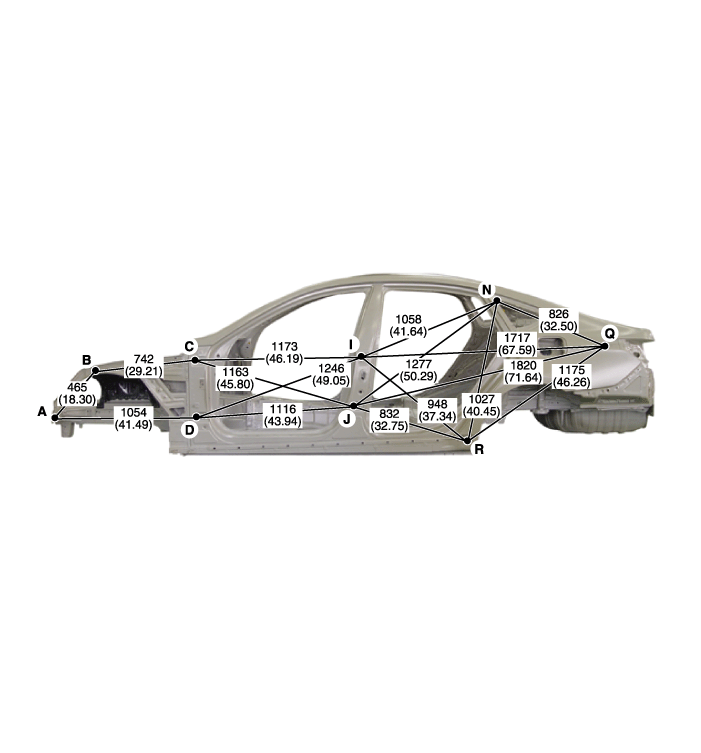

| Side Body A |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

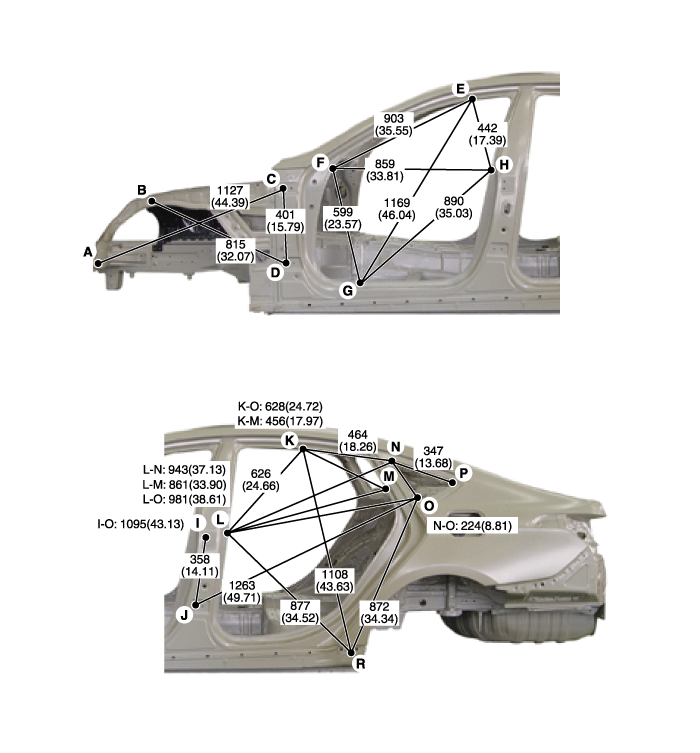

| Side Body B |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Fender apron panel tooling hole (O10) | Fender apron panel tooling hole (O8) | Front door upper hinge mounting hole (O13) |
|
|
|
| Front door lower hinge mounting hole (O13) | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Side outer panel notch | Rear door upper hinge mounting hole (O13) |
|
|
|
| Rear door lower hinge mounting hole (O13) | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Quarter fixed glass mounting notch | Quarter fixed glass mounting hole (O8) |
|
|
|
| Quarter fixed garnish mounting notch | Rear combination lamp housing mounting hole (O6) | Side sill moulding tooling hole (O16) |
Front Body A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Front Body B * These dimensions indicated in this figure are actual-measurement dimensions.
Interior A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Interior B * These dimensions indicated in this figure are actual-measurement dimensions.
