Hyundai Genesis: Body Dimensions / Front Body Body Repair

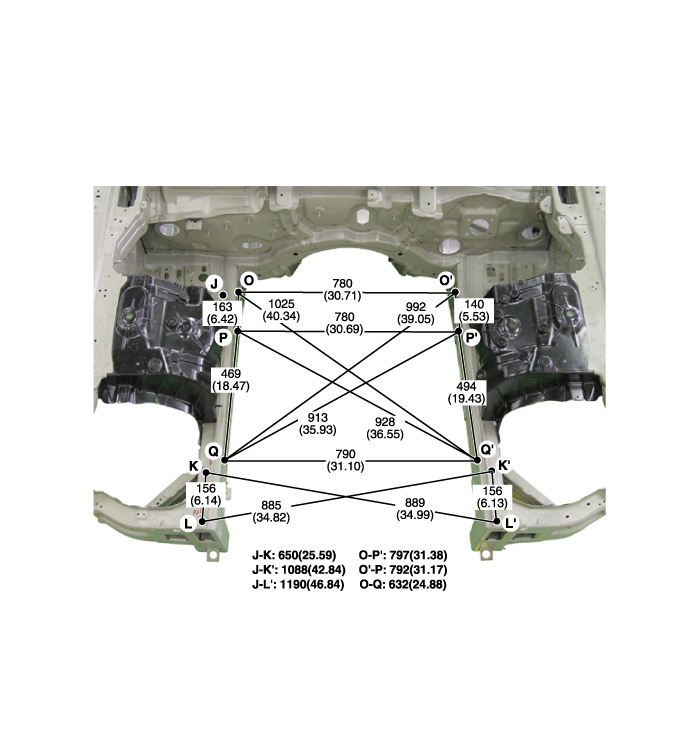

Front Body A

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

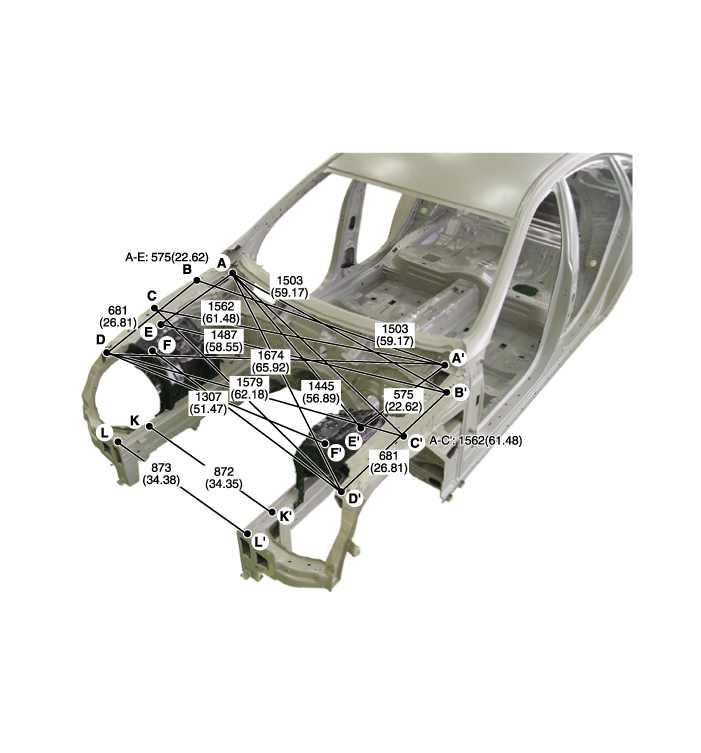

Front Body B

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

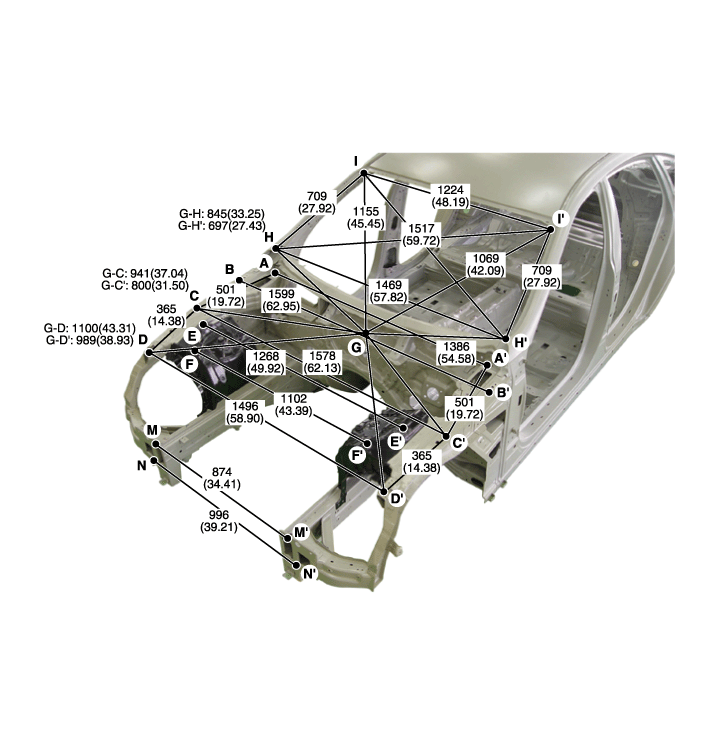

Front Body C

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front Body D

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Hood hinge mounting hole (O11)

Fender panel mounting hole (O6.6)

Fender panel mounting hole (O6.6)

Fender panel mounting hole (O6.6)

Front end module mounting hole (O9)

Front end module mounting hole (O9)

Front shock absorber housing center panel tooling hole (O15)
Front shock absorber housing center panel tooling hole (O15)
Strut bar mounting hole (O11)

Wiper pivot center mounting hole
(O6.6)
Front pillar outer corner

Front pillar outer corner


Front side member tooling hole (O9)

Front side member tooling hole (O6.6)

Fender apron extension tooling hole
(O14)

Front end module mounting hole (O11)

Front end module mounting hole (O15)

Front side member tooling hole (O6.6)

Front side member tooling hole (O6.6)

Front side member tooling hole (O6.6)

Front side member tooling hole (O6.6)


General Information
General 1. Basically, all measurements in this manual are taken with a tracking gauge. 2. When a measuring tape is used, check to be sure there is no elongation, twisting or bending. 3. ...
