Hyundai Genesis (DH): Body Dimensions / Side Body Body Repair

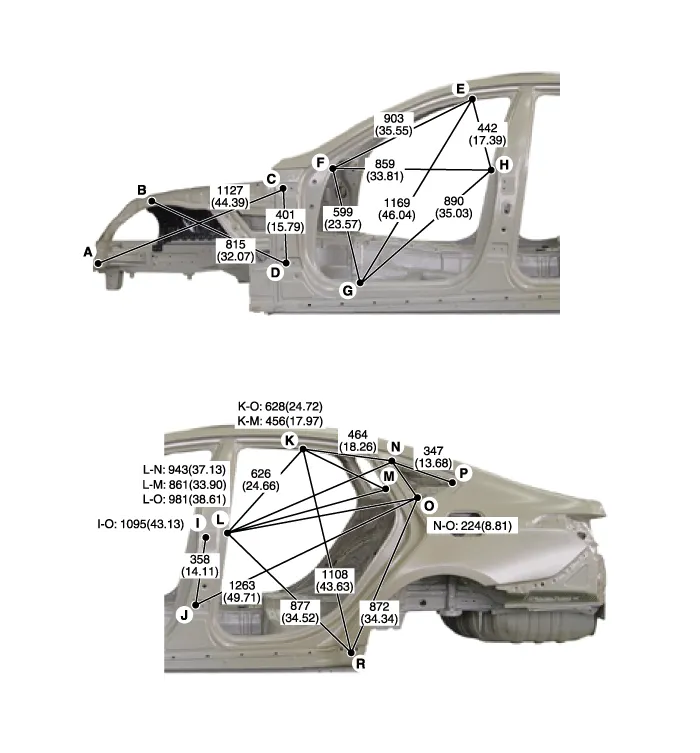

| Side Body A |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

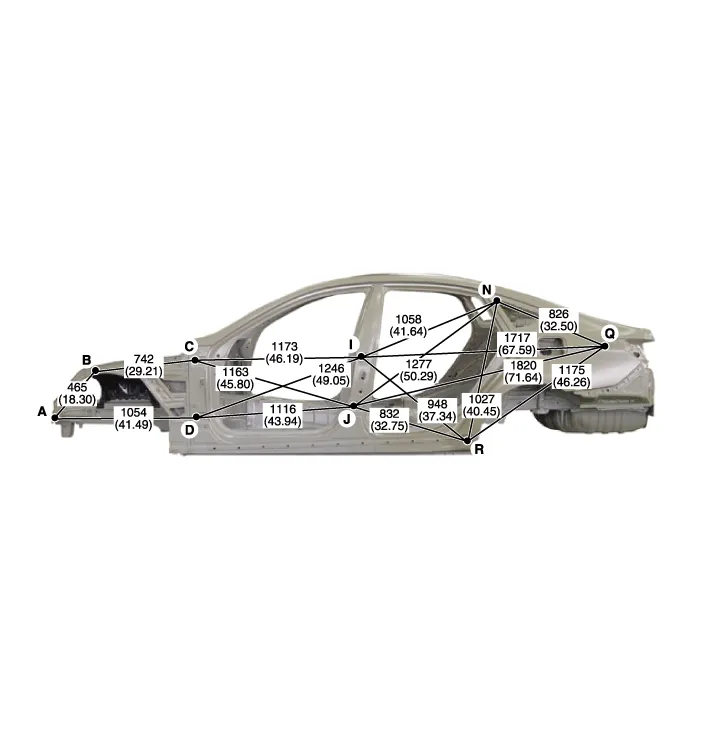

| Side Body B |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Fender apron panel tooling hole (O10) | Fender apron panel tooling hole (O8) | Front door upper hinge mounting hole (O13) |
|
|
|
| Front door lower hinge mounting hole (O13) | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Side outer panel notch | Rear door upper hinge mounting hole (O13) |
|
|
|
| Rear door lower hinge mounting hole (O13) | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Quarter fixed glass mounting notch | Quarter fixed glass mounting hole (O8) |
|
|
|
| Quarter fixed garnish mounting notch | Rear combination lamp housing mounting hole (O6) | Side sill moulding tooling hole (O16) |
Front Body A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Front Body B * These dimensions indicated in this figure are actual-measurement dimensions.
Interior A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Interior B * These dimensions indicated in this figure are actual-measurement dimensions.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Parking Assist Sensor Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front/rear bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover") 3. Disconnect the connector (B) from the parking assist sensor (A).
Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Description and Operation
Description The photo sensor is located in the right side of the inside rearview mirror. he integrated rain sensor is located in the right side of the inside rearview mirror. The integrated rain sensor is a multifunctional sensor which combines the photo sensor and auto light sensor, and has a built-in photovoltaic diode (for detecting t
