Hyundai Genesis (DH): Body Dimensions / Interior Body Repair

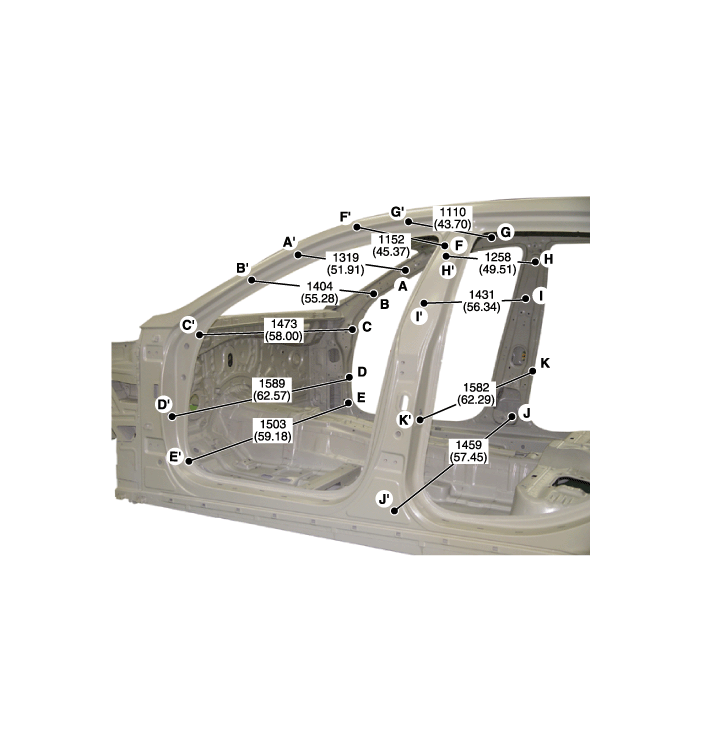

| Interior A |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior B |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

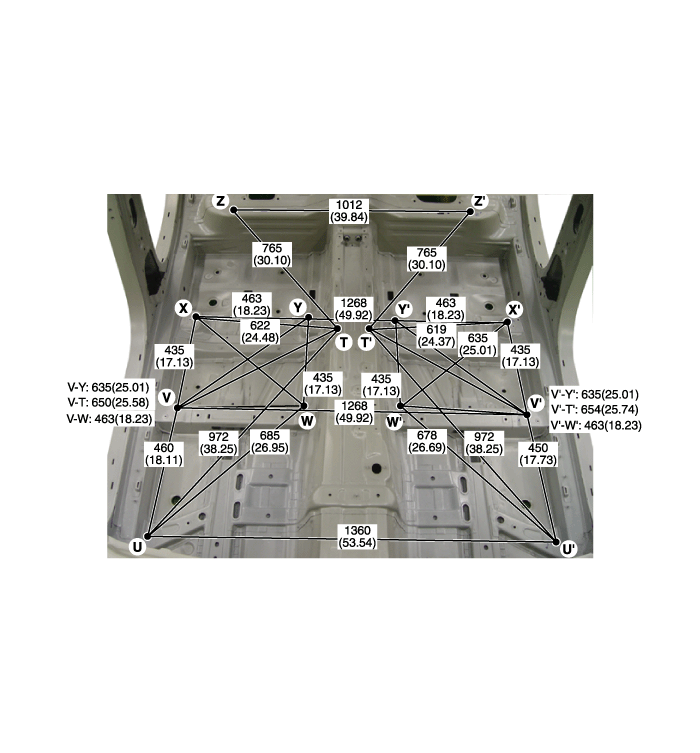

| Interior C |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

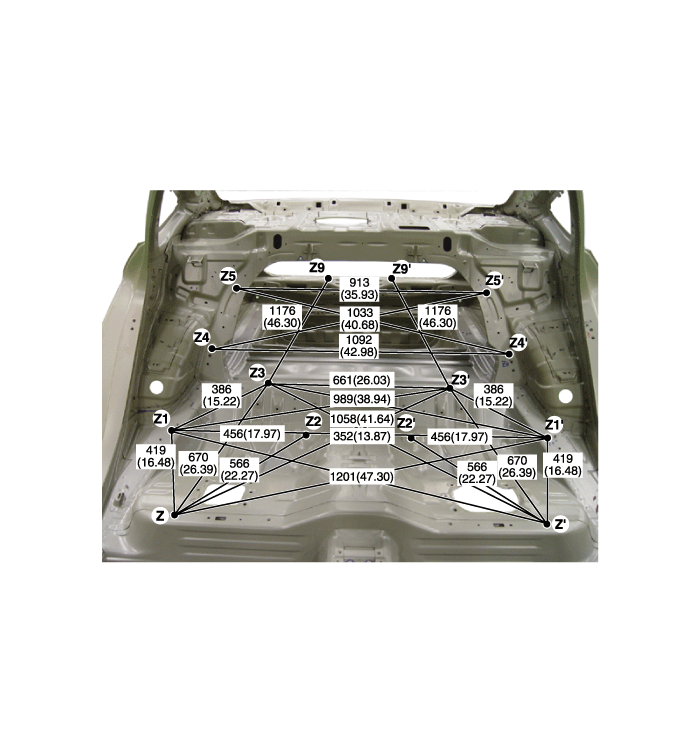

| Interior D |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

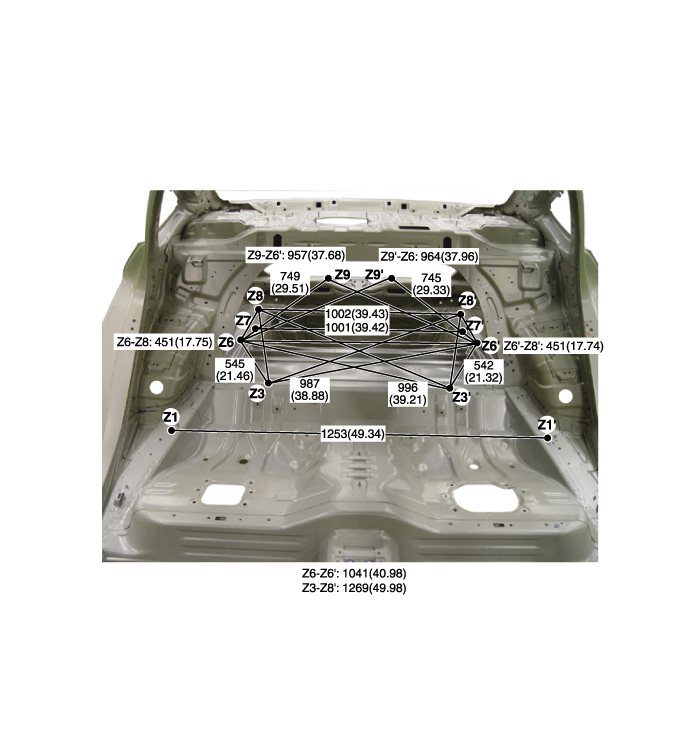

| Interior E |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Curtain airbag mounting hole (O9) | Curtain airbag mounting hole (O9) | Curtain airbag mounting hole (O9) |
|
|
|
| Cowl crossbar mounting hole (O9) | Front door checker mounting hole (O11) | : Cowl side trim mounting hole (20X5.5) |
|
|
|
| Assist handle mounting hole (O11) | Assist handle mounting hole (O11) | Roof side inner rail tooling hole (O10) |
|
|
|
| : Roof side inner rail tooling hole (O10) | Seat belt height adjuster upper mounting hole (O16) | Seat belt height adjuster lower mounting hole (O16) |
|
|
|
| Wiring harness mounting hole (7X12) | : Wiring harness mounting hole (7X12) | Rear door checker mounting hole (O11) |
|
|
|
| Curtain airbag mounting hole (O9) | Curtain airbag mounting hole (O9) | Curtain airbag mounting hole (O9) |
|
|
|
| Rear pillar trim mounting hole (O8.4) | Side impact sensor mounting hole (O6.6) | Side impact sensor mounting hole (O6.6) |
|
|
|
| Rear wheel house inner panel tooling hole (O12) | Rear door striker mounting hole (O13) | Quarter inner upper trim mounting hole (O8.4) |
|
|
|
| Quarter inner upper trim mounting hole (O8.4) | Quarter inner panel tooling hole (O6.6) | Quarter inner panel tooling hole (O6.6) |
|
|
|
| Floor wiring harness mounting hole (O6.6) | Center floor side member upper reinforcement tooling hole (O10) | Front seat mounting hole (O13) |
|
|
|
| Front seat mounting hole (O13) | Front seat mounting hole (O13) | Front seat mounting hole (O13) |
|
|
|
| Rear seat mounting hole (O12) | Rear seat mounting hole (O12) | Rear seat belt anchor mounting hole (O16.5) |
|
|
|
| Rear seat mounting hole (O9) | Rear package tray tooling hole (O12) | Rear package tray tooling hole (O9) |
|
|
|
| Luggage side trim mounting hole (O6.6) | Luggage side trim mounting hole (8.5X8.5) | Luggage side trim mounting hole (8.5X8.5) |
| ||
| Rear transverse trim mounting hole (O8.5) |

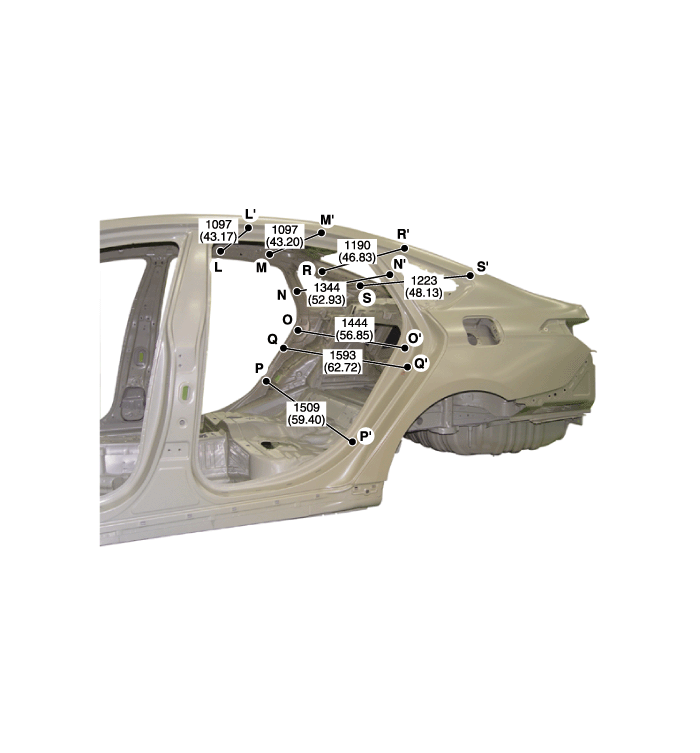

Side Body A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Side Body B * These dimensions indicated in this figure are actual-measurement dimensions.
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Side outer panel rear corner Side outer panel rear corner Side outer panel rear corner Rear combination lamp mounting hole(O6.
