Hyundai Genesis (DH): Lighting System / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Lighting System / Components and Components Location

Component Location

1. Head lamp (Low/)
2. Head lamp (High)
3. Head lamp (BI-FUNCTION)
4.Turn signal lamp
5. Side marker lamp
6. Position lamp (USA only) Position lamp & DRL
7. Vanity lamp
8. Turn signal lamp (Door mirror)
9. Fog lamp
10. Room lamp (NON-Panorama Sunroof)
11. Personal lamp (Panorama Sunroof only)

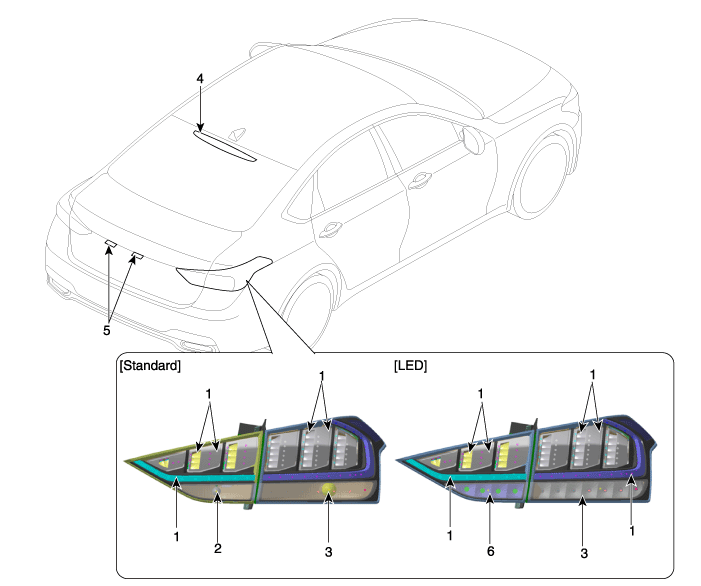

1. Stop/Tail lamp
2. Back up
3. Turn signal lamp
4. High mounted stop lamp
5. License plate lamp
6. Back up / Turn signal lamp

    Specification ItemBulb TypeBulb Wattage (W)FrontHead lamp (Halogen)LowH1155HighHB360Head lamp (HID)LowD1S35HighBI-Function-Front turn signal lampLED / PY28WLED / 28Position lampLEDLEDFront fog lampLEDLEDDoor mirror turn signal lampLEDLEDRearHigh mounted stop lampLEDLEDTurn signal lamp28/8W NA / LED28 / LEDRear stop/tail lamp (Outside)LEDLEDRear stop/tail lamp (Inside)LEDLEDBack up lampW16W / LED16 / LEDLicense plate lampLEDLEDInteriorLuggage lampLEDLEDMap LampLEDLEDRoom LampLEDLEDVanity LampLEDLED

    Components 1. Head lamp low beam bulb2. Head lamp high beam bulb3. Dust cap 1. HID low/high beam bulb (BI-FUNCTION)2. HID bracket3. Dust cap4.
