Hyundai Genesis (DH): Lighting System / Head Lamps Components and Components Location
| Components |
| 1. Head lamp low beam bulb 2. Head lamp high beam bulb | 3. Dust cap |

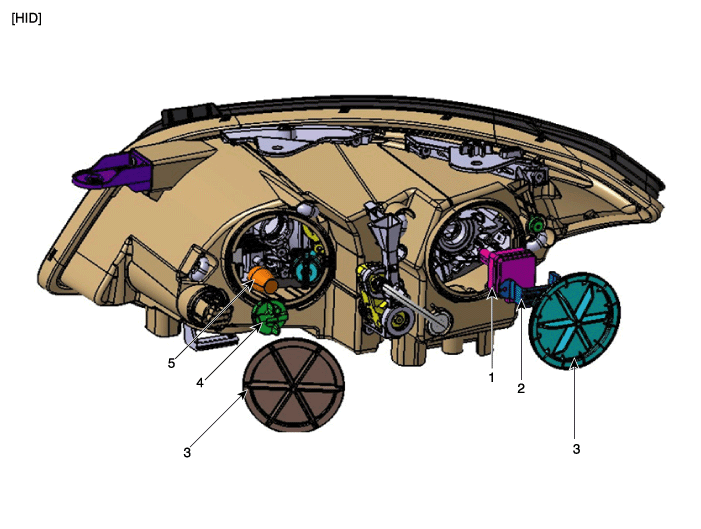

| 1. HID low/high beam bulb (BI-FUNCTION) 2. HID bracket 3. Dust cap | 4. Turn signal socket 5. Turn signal bulb |
Component Location 1. Head lamp (Low/)2. Head lamp (High)3. Head lamp (BI-FUNCTION)4.Turn signal lamp5. Side marker lamp6. Position lamp (USA only) Position lamp & DRL7.
HID Head Lamp 1. Bulb (1) Elements Xenon gas: Xenon gas activates the initial reaction to. Molybdenum electrode : anode arc discharge Metal halide salts: color composing component (2) Lightening principle When Xenon gas and metal halide salt will discharge the molybdenum anode in a capsule, it emits light.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Ambient Temperature Sensor Description and Operation
Description The ambient temperature sensor is located inside the side mirror and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature. The sensor output will be used for discharge temperature control, temperature regulation door control,
Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
