| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

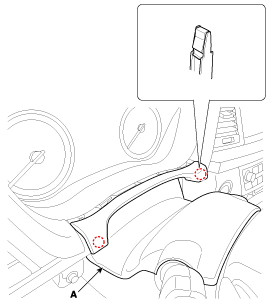

Remove the steering column upper shrouds (A).
(Refer to Body - "Steering Column Shroud Panel")
|
| 3. |
Disconnect the multifunction switch connector (A).
|
| 4. |
Remove the wiper switch (A) by pushing the lock pin (B).
|
| 5. |
If it is necessary to remove multifunction switch assembly, remove the steering wheel.
(Refer to Steering - "Steering wheel") |
| 6. |
Remove the clock spring.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
|
| 7. |
Loosening the screws (2EA) from the multifunction switch assembly (A).
|
| Installation |
| 1. |
Install the multifunction switch. |
| 2. |
Install the clock spring and steering wheel. |
| 3. |
Install the steering column upper and lower shrouds. |
| 4. |
Install the steering wheel. |
| Inspection (With GDS) |
| 1. |
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS).
The diagnostic system(GDS) provides the following information.
|
| 2. |
Select the 'Car model' and the 'Multi Function Switch (MFSW)' to be checked in order to check the vehicle with the tester. |
| 3. |

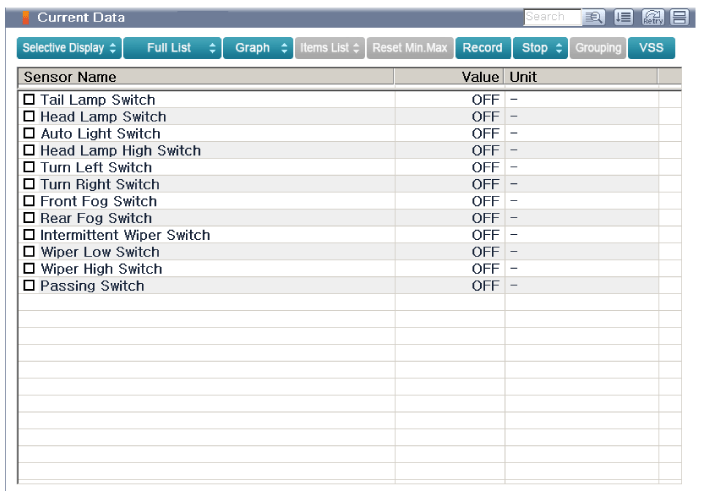

Select the 'Current Data' menu to search the current state of the input/output data.
|
| 4. |

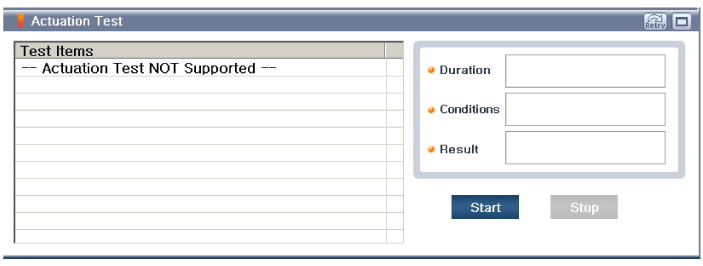

To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'
|
Component 1. Steering column2. Lighting switch3. Wiper switch4. Screw5. Clock Spring
