Hyundai Genesis: Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

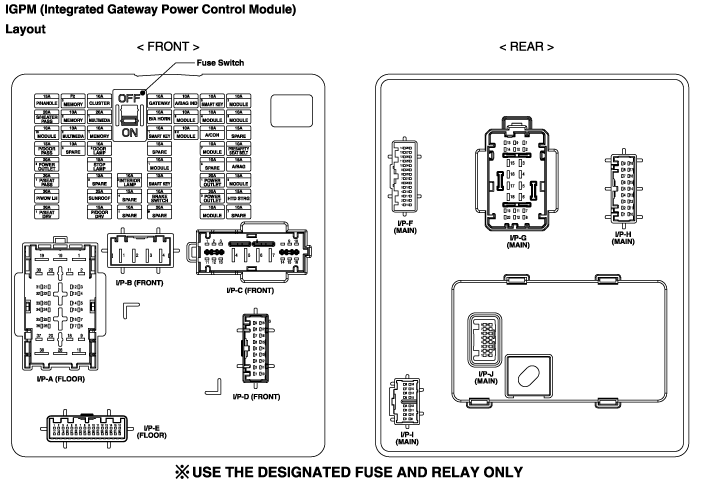

Component Location

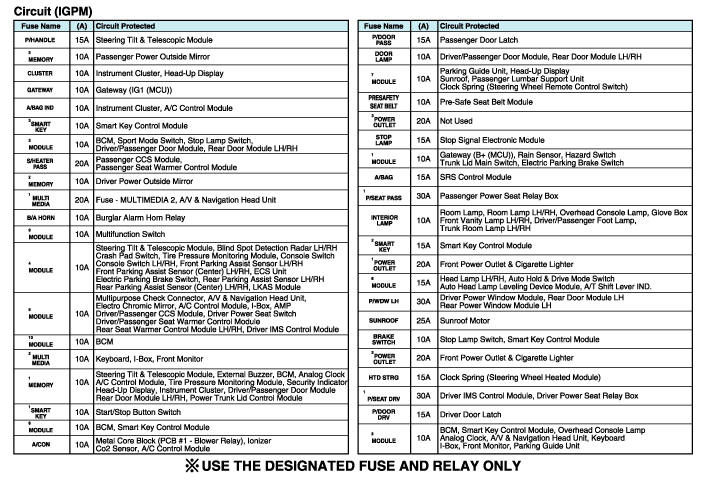

Interior Junction Block

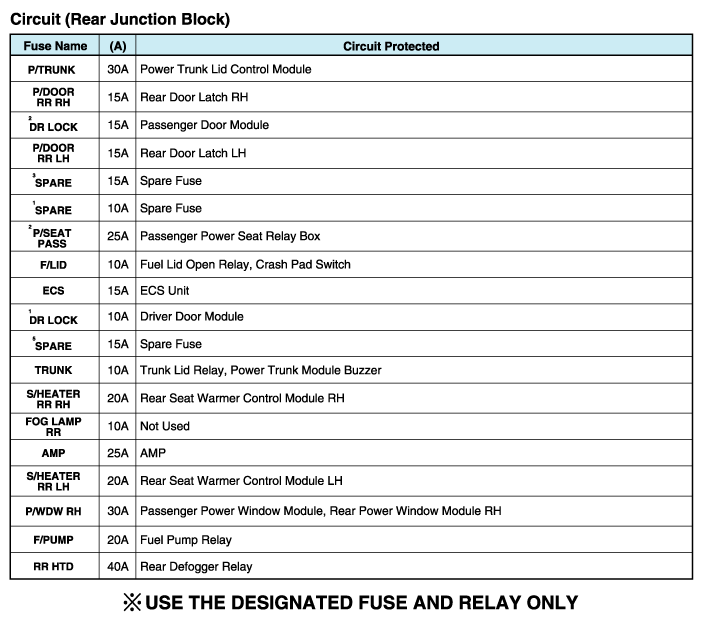

Relay Box (Engine Compartment) Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A) Check for continuity between the terminals. ...

Relay Box (Passenger Compartment) Description and Operation
Description AppellationDescriptionAAFActive Air FlapACUAirbag Control UnitADMAssist Door ModuleAHDActive Hood SystemAMPAmplifierARSArmrest SwitchASCCAdvanced Smart Cruise ControlAVMAround View Mo ...
