In order to remove the rear glass, use the tools shown in the following figure:
[Tooling Diagram]
 Square wire  Insert-type wire grip[Tooling Assembly Diagram] |
|
| 1. |
Remove the movable glass.
(Refer to Panorama Sunroof - "Movable Glass") |
| 2. |
Remove the roof side molding.
(Refer to Body Side Molding - "Roof Side Molding") |
| 3. |

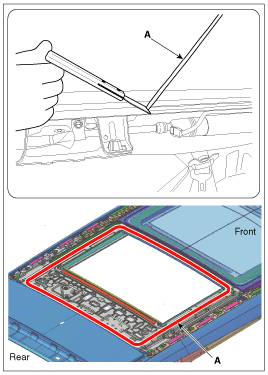

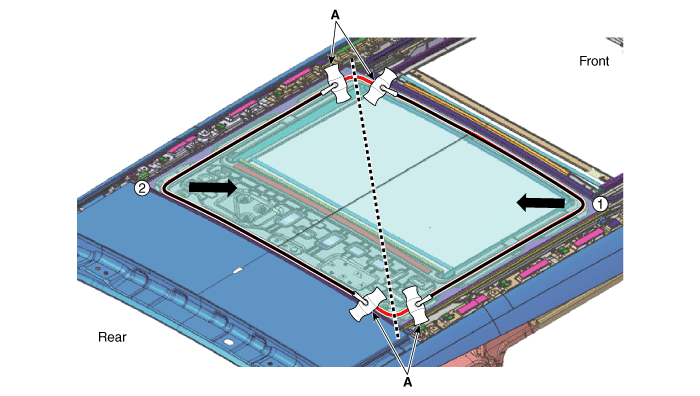

Pull the square wire (A) to the left and right, then apply a
force in the direction of the arrow to cut off the residual sealant.
| • |
To efficiently apply force to the cutting surface, make sure that the wire is not too long. |
|
| • |
Make sure that you put on gloves to protect your hands from potential injury. |
| • |
Be careful to protect your hands from burning due to the heat generated when handling the wire |
| • |
Be careful not to break the wiring. |
|
| • |
Be careful not to damage the body. |
|
| • |
When using wiring, an assistant is necessary. |
|
|
| 4. |
Remove the rear glass (A) carefully without damaging it.
|
| • |
In order to mount the rear glass, use the tools shown in the following figure:
[Tooling Diagram]
Sealant nozzle
Adhesive sealant for car windows
 Sealant gun |
|
| 1. |
Install the roof side molding. |
| 2. |
Close the movable glass fully by pressing the panorama sunroof switch. |
| 3. |
Use a blade to cut off residual sealant (A) around body panel.
| • |
When cutting off the residual sealant around the body panel, be sure to leave the sealant of about 2mm from the surface. |
|
| • |
Make sure that the body paint surface is not damaged at all. |
| • |
If it is damaged, apply paint or rust inhibitor for maintenance. |
|
|
| 4. |

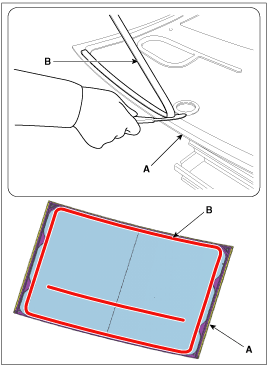

If rear glass (A) is reused, use a blade to remove residual sealant (B) around the body panel.
|
| 5. |
Use alcohol or an air gun to clean up the edges of the body panel and rear glass. |
| 6. |

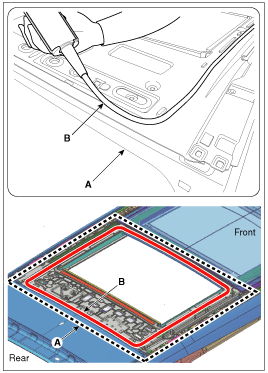

Use a sealant gun to apply sealant (B) around body panel (A).
| • |
When using a sealant gun to apply the sealant, make sure there are no gaps in the sealant bead to prevent water leaks. |
|
|
| 7. |
Install the rear glass (A) loosely on the body panel.
|
| 8. |
Align the rear glass (A) and body panel before fully mounting the front glass. |
| 9. |
Apply tape to around the rear glass to prevent the glass from coming off.
| • |
If sealant is excessively applied, it may ooze out of the
body. Use alcohol or a cleaning agent to wipe off the residual sealant. |
|
| • |
Mount rear glass and place the car on a flat surface at least for 4 hours. |
| • |
If you have to drive the car, be sure to SLOWLY drive the car for at least 8 hours after mounting. |
| • |
Advise the driver to avoid aggressive driving for 2-3 days, or driving on rough roads. |
|
|
