Component Location
[Lambda engine]

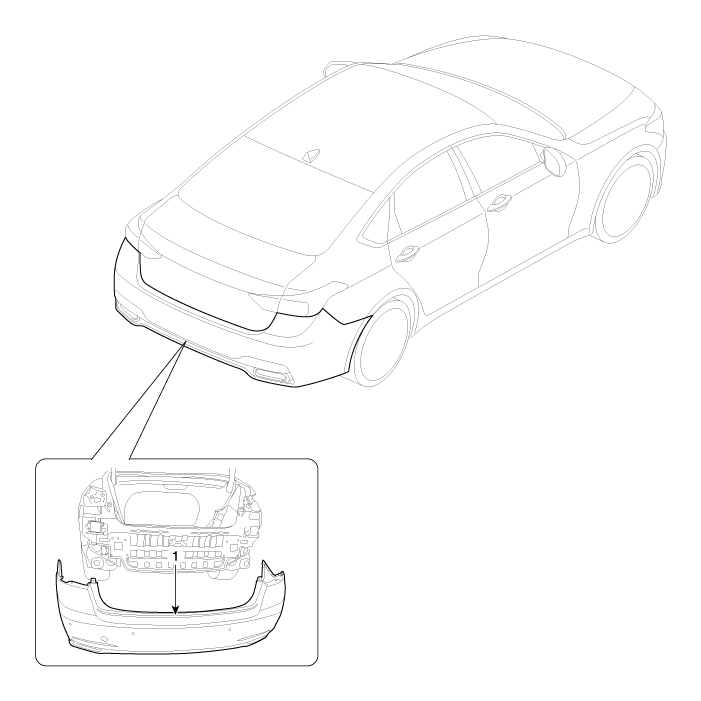

1. Rear bumper cover


[Tau engine]

1. Rear bumper cover


Components and Components Location
Components 1. Rear bumper cover2. Rear bumper side bracket [LH]3. Rear bumper side bracket [RH] ...

Rear Bumper Cover Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape aroun ...
