Hyundai Genesis (DH): Rear Bumper / Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and Components Location

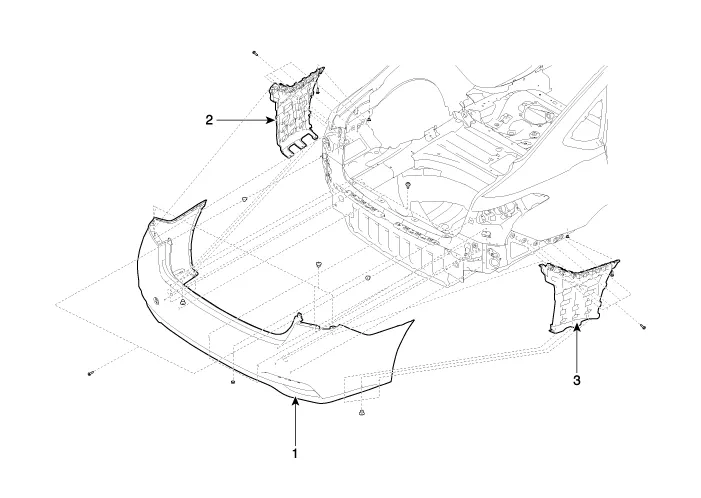

| Components |
| 1. Rear bumper cover 2. Rear bumper side bracket [LH] | 3. Rear bumper side bracket [RH] |
Component Location [Lambda engine] 1. Rear bumper cover [Tau engine] 1. Rear bumper cover
