Hyundai Genesis (DH): Rear Bumper / Rear Bumper Cover Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Rear Bumper / Rear Bumper Cover Components and Components Location

Component Location

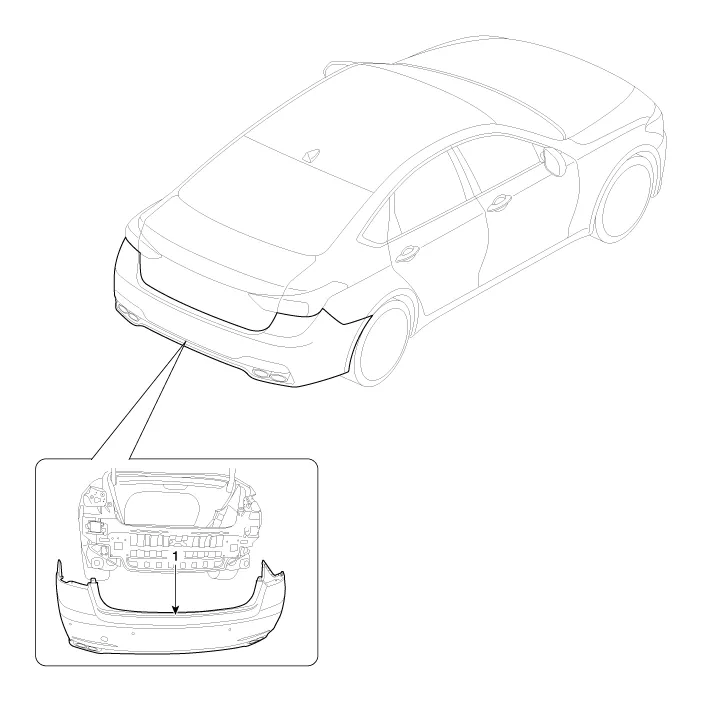

[Lambda engine]

1. Rear bumper cover


[Tau engine]

1. Rear bumper cover


    Components 1. Rear bumper cover2. Rear bumper side bracket [LH]3. Rear bumper side bracket [RH]

    Replacement
