Hyundai Genesis: Cylinder Block / Piston and Connecting Rod Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Cylinder Block / Piston and Connecting Rod Components and Components Location

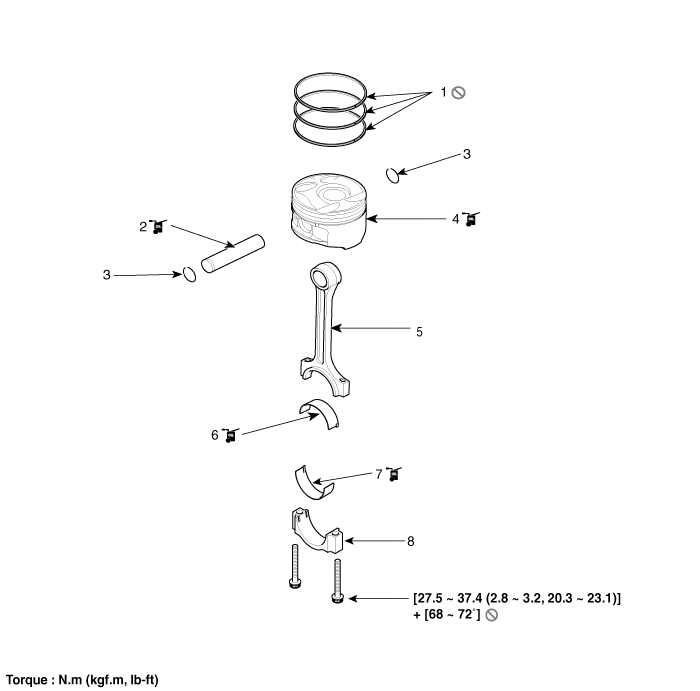

Components

1. Piston ring
2. Piston pin
3. Snap ring
4. Piston
5. Connecting rod
6. Connecting rod upper bearing
7. Connecting rod lower bearing
8. Connecting rod bearing cap
