Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Lubrication System / Oil Level Gauge & Pipe Components and Components Location

Components

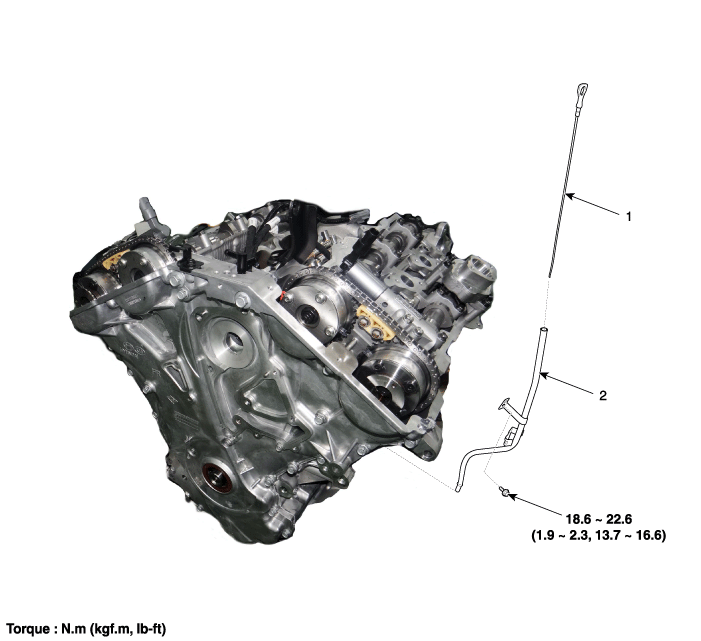

1. Engine oil level gauge
2. Engine oil level gauge rod

Oil Pump Repair procedures
Removal and Installation 1. Remove the lower oil pan. (Refer to Lubrication System - "Oil pan") 2. Remove the upper oil pan. 3. Remove the bolt (A) and then separate the chain with sp ...

Oil Level Gauge & Pipe Repair procedures
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover" ...
