Hyundai Genesis: Convenient features of your vehicle / Instrument cluster

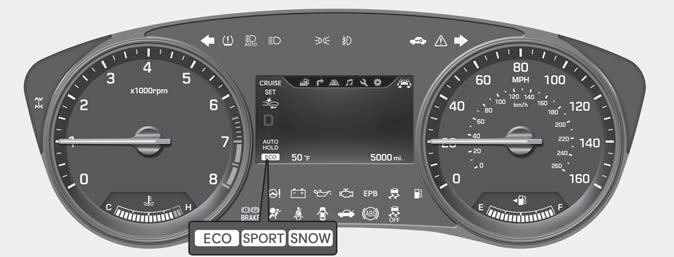

■ Type A

■ Type B

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)

Fuel filler door

Opening the fuel filler door The fuel filler door must be opened from inside the vehicle by pushing the fuel filler door opener button. 1. Turn the engine off. 2. Push the fuel filler door op ...

Instrument Cluster Control

Adjusting Instrument Cluster Illumination When the Engine Start Stop button is in the ON position, press the illumination control button to adjust the instrument panel illumination intensit ...
