Hyundai Genesis (DH): Cooling System / Water pump Components and Components Location

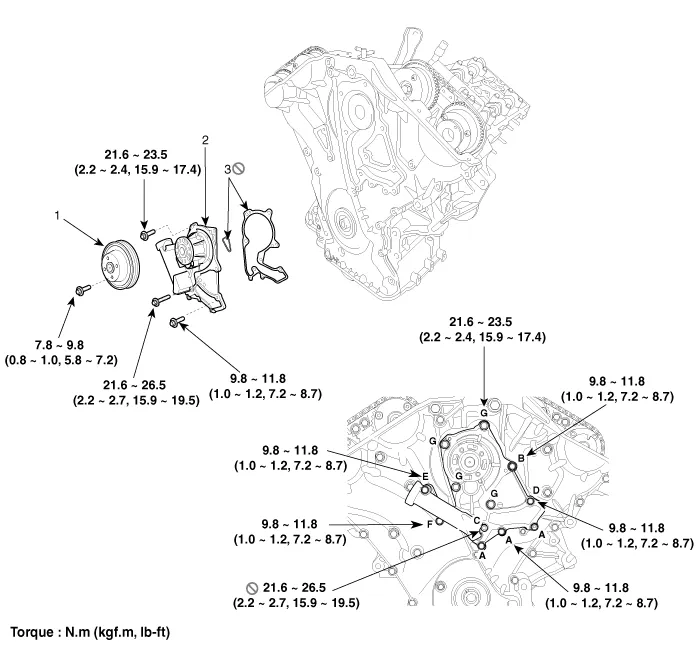

| Components |
| 1. Water pump pulley 2. Water pump | 3. Water pump gasket |
Removal and Installation Water Temperature Control Assembly 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover.
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 3.
