Hyundai Genesis (DH): Trunk Lid / Trunk Lid Assembly Components and Components Location

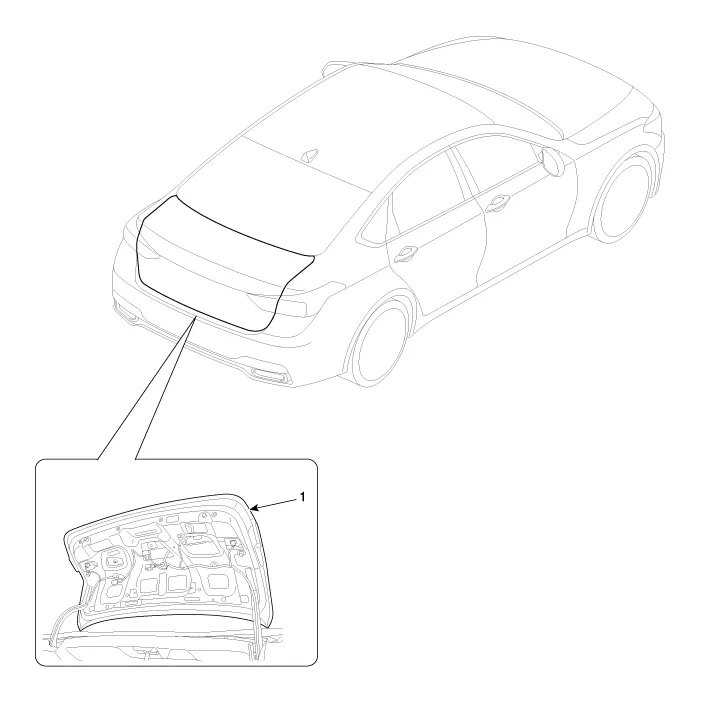

| Component Location |
| 1. Trunk lid assembly |
Adjustment 1. Place the car on a flat surface and check whether the body and trunk lid are well-aligned. 2. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down or from side to side.
Replacement
