Hyundai Genesis (DH): Timing System / Timing Chain Cover Components and Components Location
| Components |

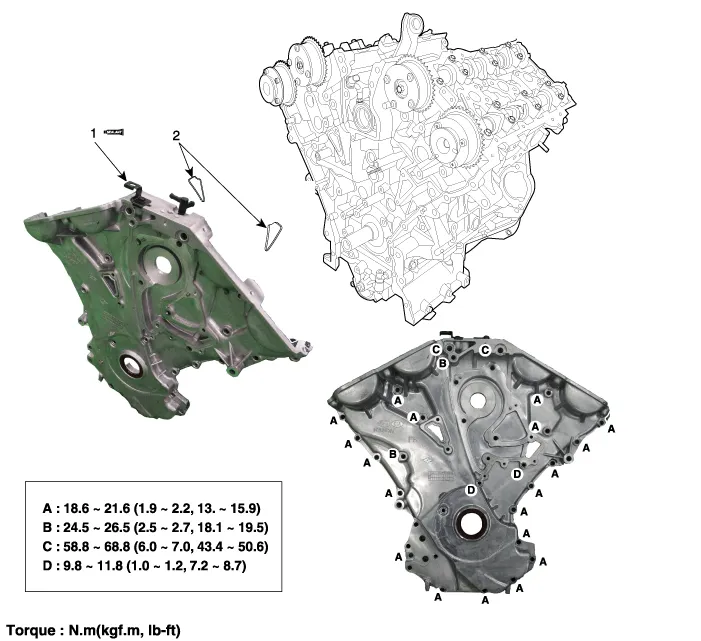

| 1. Timing chain cover | 2. Gasket |
Removal 1. Remove the crankshaft pulley. (Refer to Timing System - "Crankshaft Pulley") 2. Remove the timing chain cover oil seal (A). Installation 1.
Removal 1. Remove the lower oil pan. (Refer to Lubrication System - "Oil Pan") 2. Drain the coolant. (Refer to Cooling System - "Coolant") 3.
