Hyundai Genesis (DH): Intake And Exhaust System / Surge Tank Components and Components Location

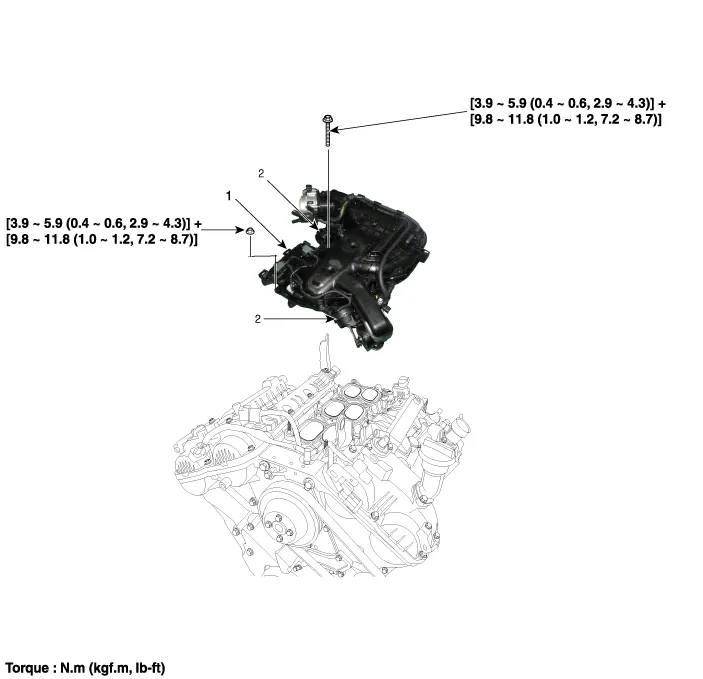

| Components |
| 1. Surge tank | 2. VIS actuator |
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. (Refer to Engine And Transaxle Assembly - "Engine Cover") 3.
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. 3. Remove the engine room cover.
