Hyundai Genesis (DH): SRSCM / SRS Control Module (SRSCM) Components and Components Location

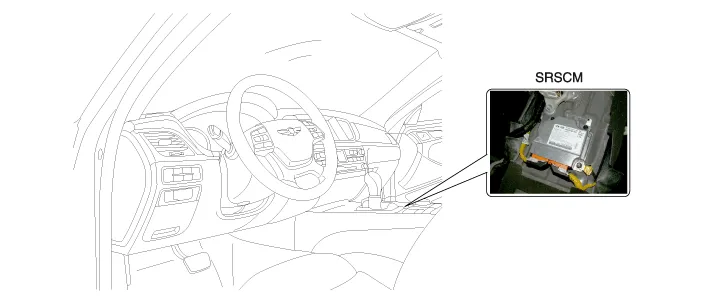

| Components |
Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does not.
Removal 1. Turn the engine OFF. 2. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 3. Remove the floor console assembly.
