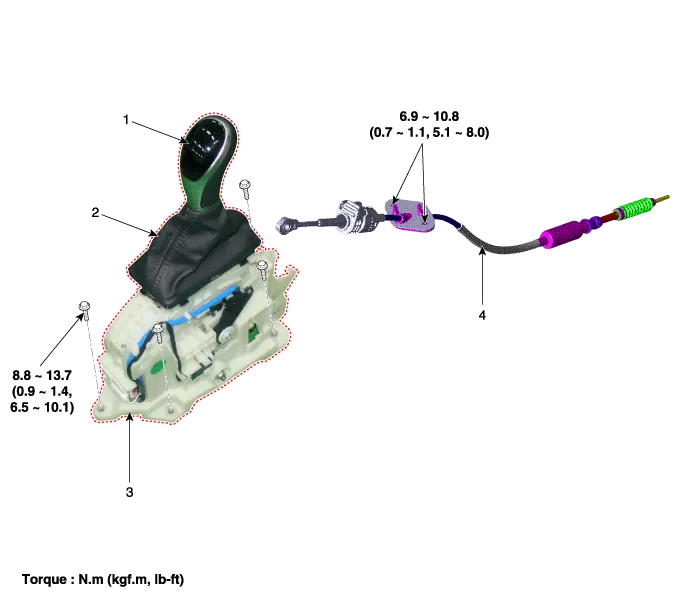

Components

1. Shift lever knob
2. Shift lever boots
3. Shift lever assembly
4. Shift cable

    Inspection

    Removal 1. Remove the console upper cover (A). 2. Pull the shift lever knob (B) upward to remove it. 3. Remove the knob&boots(A) from the console upper cover.
