Hyundai Genesis (DH): Rear Seat / Rear Seat Assembly Repair procedures

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Assembly Repair procedures

Replacement
[Rear Seat Cushion Assembly]
1.

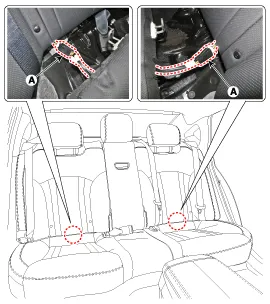

Remove the rear seat cushion assembly (A) by pulling it upward.
Tightening torque :
19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)

2.
Disconnect the rear seat cushion extension connector (A).

3.
Install in the reverse order of removal.


    Component Location 1. Rear seat cushion assembly2. Rear seat back assembly

    Component Location 1. Rear seat back cover [LH]2. Rear seat back cover [RH]
