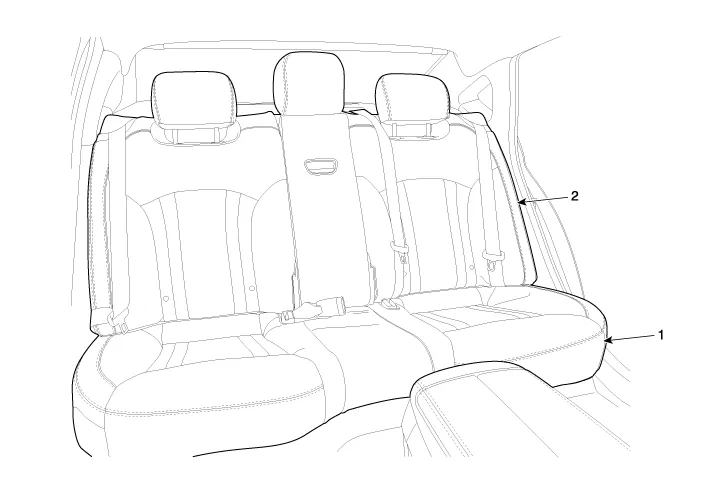

Component Location

1. Rear seat cushion assembly
2. Rear seat back assembly

    Components 1. Rear seat cushion cover 2. Rear back armrest3. Rear seat back cover [LH]4. Rear seat back cover [RH]

    Replacement [Rear Seat Cushion Assembly] 1. Remove the rear seat cushion assembly (A) by pulling it upward. Tightening torque : 19.6 ~ 29.
