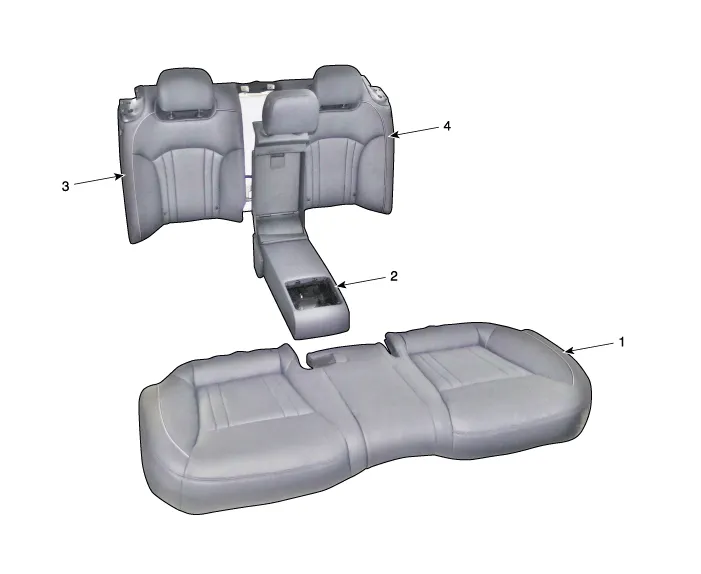

Hyundai Genesis (DH): Rear Seat / Components and Components Location

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: Cluster Ionizer Repair procedures

Inspection 1. Press the MODE switch more than 4 times within 2 seconds while pressing the OFF switch. DisplayFail description00Normal51Cluster ion generator fault * For diagnostic procedure, refer to DTC guide. Replacement 1. Disconnect the negative (-) battery terminal.

Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
