Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Back Cover Components and Components Location

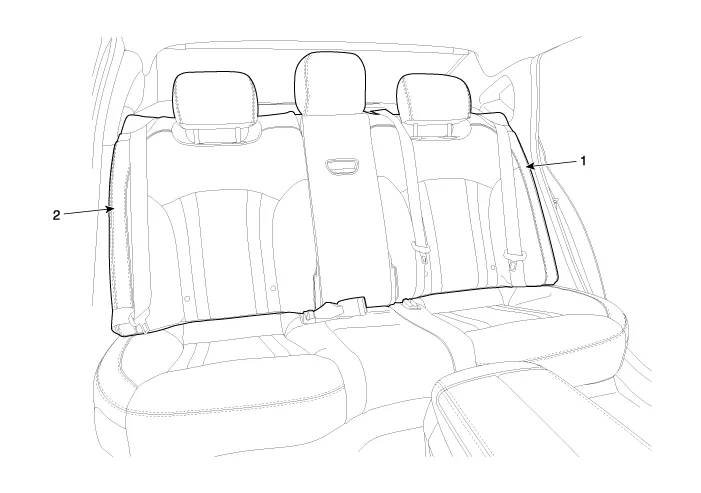

Component Location

1. Rear seat back cover [LH]
2. Rear seat back cover [RH]
