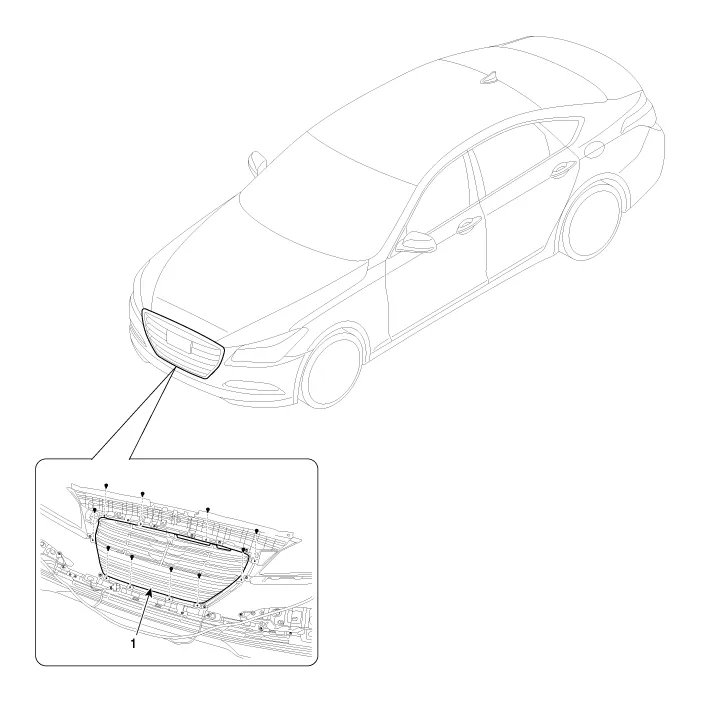

Hyundai Genesis (DH): Front Bumper / Radiator Grill Components and Components Location

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: License Lamps Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the trunk lid panel. (Refer to Body - "Trunk Lid Back Panel") 3. Remove the license lamp after disengaging the license lamp mounting clip (A) 4. Remove the license lamp assembly after disconnecting the license connector (A).

Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
