Hyundai Genesis (DH): Cooling System / Radiator Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Cooling System / Radiator Components and Components Location

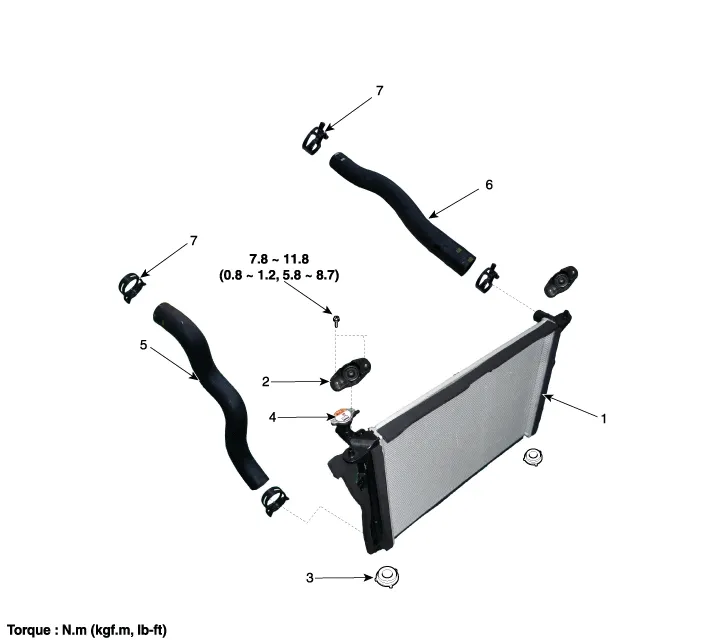

Components

1. Radiator assembly
2. Radiator upper mounting bracket
3. Radiator lower mounting insulator
4. Radiator cap
5. Radiator lower hose
6. Radiator upper hose
7. Clamp

    Troubleshooting SymptomsRemedyIf the cooling fan is not functioning under normal operating conditions

    Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Loosen the drain plug and drain the engine coolant. (Refer to Cooling System - "Coolant") 3.
