Hyundai Genesis (DH): Seat Belt Pretensioner / Pre-activeSeat Belt Unit (PSB) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / Seat Belt Pretensioner / Pre-activeSeat Belt Unit (PSB) Components and Components Location

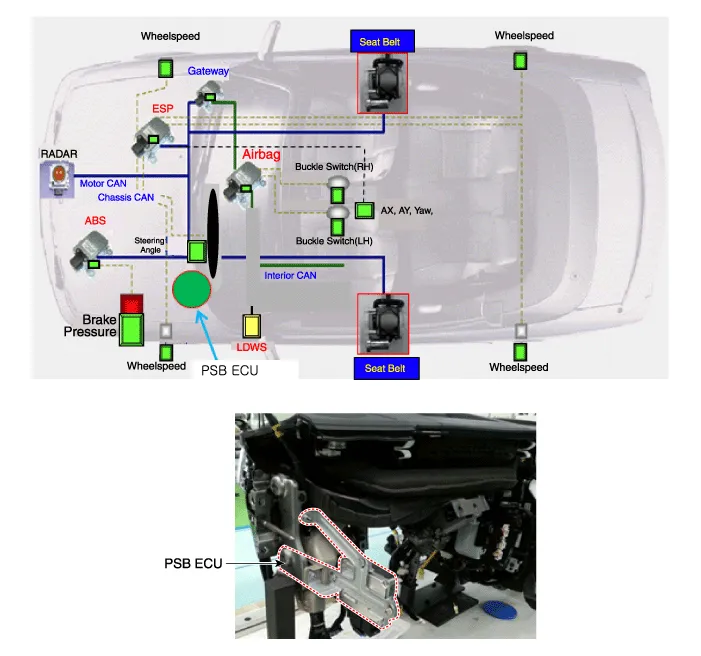

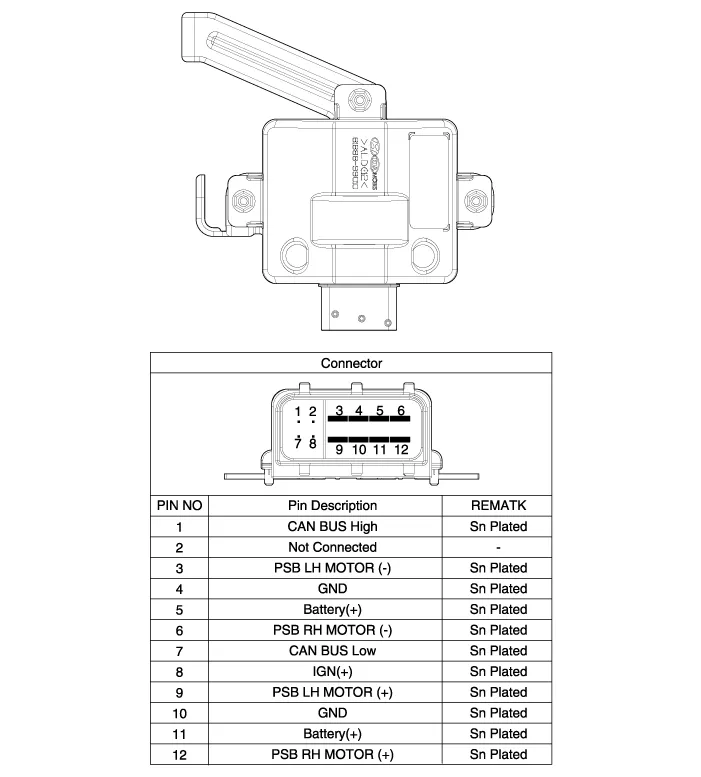

Components

TCS:Traction Control System
ESP:Electronic Stabilty Program System
ACU:Airbag Control Unit
CGW:Central Gate Way
SCC:Smart Cruise Control
LDWS:Lane Departure Warning System

    Description Pre-active Seat Belt (PSB) guarantees initial restraint performance by winding the seat belt right before a crash or dangerous condition and enhances the effects of the seat belt pretensioner, load limiter and airbags.

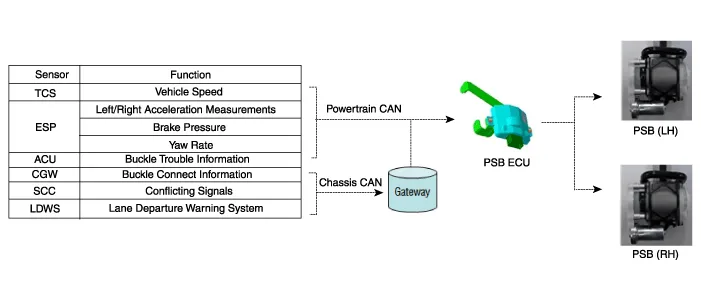

    Circuit Diagram
