Hyundai Genesis (DH): Seat Belt Pretensioner / Pre-activeSeat Belt (PSB) Components and Components Location
| Components |

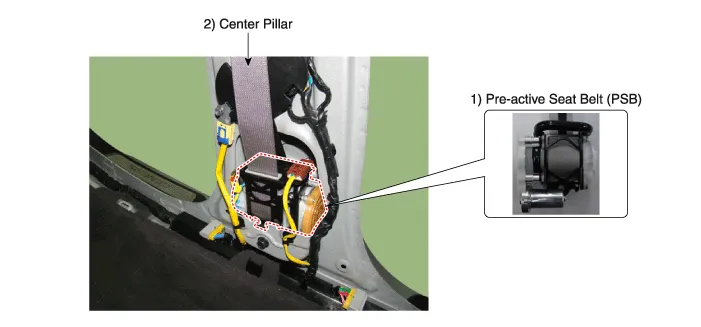

| 1. Pre-active Seat Belt (PSB) | 2. Center Pillar |
| 1. Pre-active Seat Belt Unit (PSB) |
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly.
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front anchor seat belt (A).
