Hyundai Genesis (DH): Power Trunk Module / Power Trunk Module Drive Unit Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Trunk Module / Power Trunk Module Drive Unit Components and Components Location

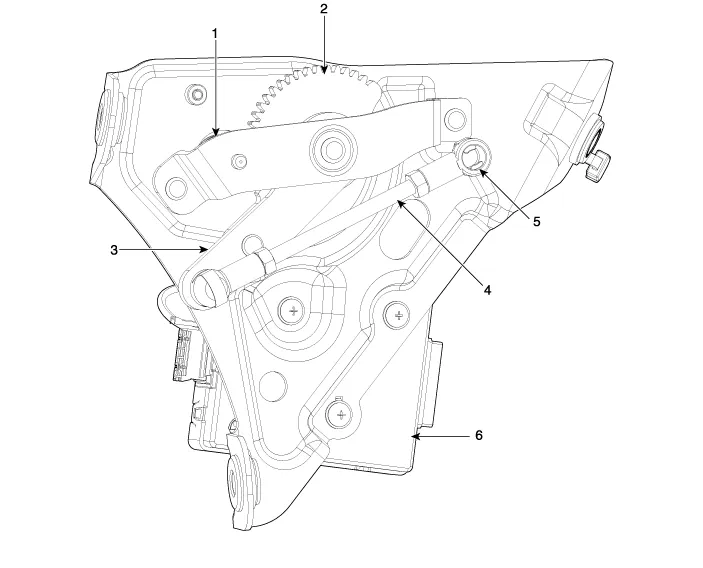

| Component Location |
| 1. PTM motor gear 2. Sector gear 3. Drive arm | 4. Push rod 5. Push rod pin |
The initialization and learning value saving All initialization and setting of PTM cannot be done by the diagnosis tool (GDS).
Circuit Diagram Block Diagram
