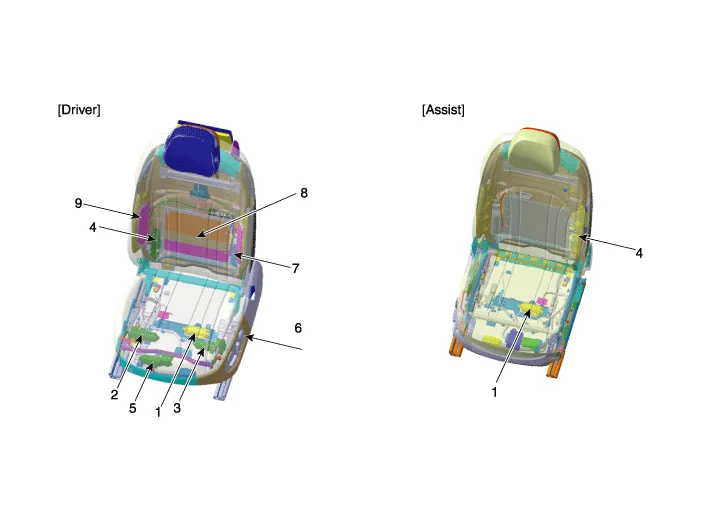

Component Location

1. Slide the motor
2. Front Height motor
3. Rear height motor
4. Backrest adjustment motor
5. Cushion extension motor
6. Air lumbar support switch
7. Air lumbar support pump
8. Air lumbar support
9. Air Bolster

    Description Power seat motor is driven by a motor in the following. 1. Slide motor 2. Front tilt motor 3. Rear Height motor 4. Reclining motor 5.
